ER-TS-12200-Modbus Features:
1. Dual axis monitoring (single axis optional);
2. Full range accuracy 0.001°, resolution 0.0005°;
3. Volume (94*74*64mm) (customizable).

High Precision Wireless Transmission Tilt Sensor

High Precision Wireless Transmission Tilt Sensor

Get Price Now



    Share to:

    Introduction

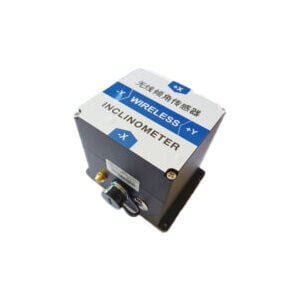

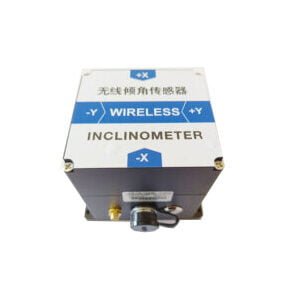

    High-Precision-Wireless-Transmission-Tilt-Sensor-for-Bridge construction-equipmentHigh Precision Wireless Transmission Tilt Sensor for Pan tilt levelingHigh Precision Wireless Transmission Tilt Sensor for Medical equipment

    High Precision Wireless Transmission Tilt Sensor

    Introduction
    ER-TS-12200-Modbus High Precision Wireless Transmission Tilt Sensor is a wireless inclination sensor with ultra-low power consumption, small size and high performance, which is aimed at the industrial application of users without power supply or real-time dynamic measurement of object attitude angle. Powered by lithium battery, based on Internet of things technology Bluetooth and ZigBee (optional) wireless transmission technology, all internal circuits have been optimized and designed, and various measures such as industrial MCU, three proof PCB board, imported cable, wide temperature metal shell are adopted to improve the industrial level of the product. With good long-term stability and small zero drift, it can automatically enter the low-power sleep mode, so as to get rid of the dependence on the use environment.
    The product has compact structure, precise design, recompensation for temperature and linearity, and integrated comprehensive protection functions such as short circuit, instantaneous high voltage, polarity, surge, etc. it is simple and convenient to use. The wireless digital signal transmission method eliminates the cumbersome wiring and noise interference caused by long cable transmission; The industrial design has extremely high measurement accuracy and anti-interference ability. The wireless sensor nodes can form a huge wireless network, support thousands of measuring points to monitor the inclination at the same time, and support professional computer software. Without field survey, it can measure and record the state of the measured object in real time; The safety monitoring system is suitable for remote real-time monitoring and analysis of industrial sites, dilapidated houses, ancient buildings, civil engineering, tilt deformation of various towers and other needs.

    Features
    Dual axis monitoring (single axis optional)
    Range: ±30°
    Accuracy: 0.001°, resolution: 0.0005°
    Volume (94*74*64mm) (customizable)
    Ultra low power consumption
    Powered by built-in rechargeable lithium battery
    Wide temperature operation -40~+85℃
    IP67 protection grade

    Applications
    Bridge construction
    PTZ levelling
    Ship navigation attitude measurement
    High railway foundation tunnel monitoring
    Satellite solar antenna positioning
    Medical equipment
    Angle control of various construction machinery

    Specifications

    Parameter Condition ER-TS-12200-Modbus Unit
    Measuring range ±30 °
    Measuring axis X, Y
    Zero temperature drift -40~85° ±0.0005 °/ ℃
    Sensitivity temperature coefficient -40~85° ≤150 ppm/℃
    Frequency response DC response 100 Hz
    Resolution 0.0005 °
    Accuracy -40~85 ℃ 0.001 °
    Long term stability -40~85 ℃ <0.0016 °
    Power on start time 0.2 s
    Response time 0.05 s
    Wireless frequency 2460mhz (default), 2405~2480 adjustable
    Transmission distance 1.6km
    Built in battery capacity 6000mAh
    Average working time ≥55000 hours / time
    Impact resistance 20000g, 0.5ms, 3 times / shaft
    Anti vibration 10grms, 10~1000Hz
    Insulation resistance ≥100m Ω
    Waterproof grade IP67
    Weight 475g (excluding packing box)
