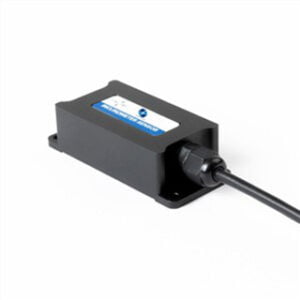

High Precision Voltage Output Two-axis Tilt Sensor

High Precision Voltage Output Two-axis Tilt Sensor

ER-TS-4250VO Features:
1. Dual-axis tilt sensor measurement;
2. Full range accuracy 0.1°, resolution 0.01°;
3. Output 0~5V, 0.5~4.5V, 0~10V optional.

High Precision Voltage Output Two-axis Tilt Sensor

High Precision Voltage Output Two-axis Tilt Sensor

Get Price Now



    Share to:

    Introduction

    High Precision Voltage Output Two-axis Tilt Sensor

    Introduction
    The ER-TS-4250VO is a low-cost dual-axis voltage output tilt sensor, the output voltage 0~5V, 0.5~4.5V, 0~10V optional, mainly for the volume and cost have high limitations of the application market. Due to the built-in new-generation MEMS production process inclination unit, small size, low power consumption, and the consistency and stability of MEMS process is very high, the operating temperature reaches the industrial grade -40~+ 85°C inclination module.
    Using the non-contact measurement principle, it can output the current attitude inclination in real time, and it is simple to use, and there is no need to retrieve the two faces with relative changes. Small size and strong ability to resist external electromagnetic interference, withstand shock and vibration. Ideal for measuring posture on industrial equipment and platforms!

    Features
    Biaxial tilt angle monitoring
    Full range accuracy 0.1°, resolution 0.01°
    Output 0~5V, 0.5 4.5V, 0~10V optional
    Wide voltage input DC 9~36V
    Wide temperature operation -40~+85°C
    Range 0~±90° (optional)
    High vibration resistance>3500g
    IP67 protection grade
    Can output RS232 at the same time, and RS485 can be customized
    Volume (90*40*27mm) (customizable)

    Applications
    Railway gauge
    Satellite solar antenna positioning
    Tractor, deep ploughing machine
    Mining machinery, oil logging equipment
    Medical equipment
    Hydraulic lifting platform
    Tilt-based monitoring
    Various engineering machinery angle control
    Bridge dam monitoring

    Specifications

    Parameters Conditions ER-TS-4250VO-10 ER-TS-4250VO-30 ER-TS-4250VO-60 ER-TS-4250VO-90 Unit
    Measuring range / ±10 ±30 ±60 ±90 °
    Measuring axis / X, Y X, Y X, Y X, Y /
    Zero temperature drift -40~85° ±0.01 ±0.01 ±0.01 ±0.01 °/℃
    Sensitivity temperature coefficient -40~85° ≤150 ≤150 ≤150 ≤150 ppm/℃
    Zero shift 0° output 0~5V output -2.5V, 0~10V output -5V V
    Frequency response DC response 100 100 100 100 Hz
    Resolution Bandwidth 0.01 0.01 0.01 0.01 °
    Accuracy -40~85℃ 0.1 0.1 0.1 0.1 °
    Long term stability -40~85℃ <0.12 °
    Power on time / 0.2 0.2 0.2 0.2 s
    Response time / 0.01 0.01 0.01 0.01 s
    Average failure-free work ≥55000 hours/time
    Output mode 0~5V, 0.5~4.5V, 0~10V
    Shock resistance 3500g, 0.5ms, 3 times/axis
    Anti-vibration 10grms, 10~1000Hz
    Insulation Resistance ≥100MΩ
    Resistance IP67
    Cables Standard 1.5M length, wearproof, grease proofing, wide temperature, shielded cables 6*0.3mm²
    Weight 145g (without cable)
