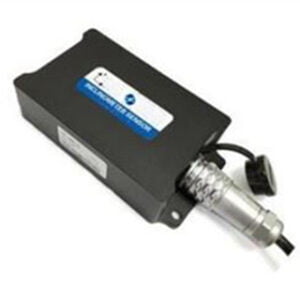

High Precision Two Axis Tilt Sensor Current Output

ER-TS-2288CU Features:
1. Two axis tilt monitoring;
2. Full range accuracy 0.005°, resolution 0.0007°;
3. Output 4~20mA, 0~20mA, 0~24mA (optional).

High Precision Two Axis Tilt Sensor Current Output

Get Price Now



    Share to:

    Introduction

    High Precision Two Axis Tilt Sensor Current Output

    Introduction
    It is a standard industrial high-precision current output dual-axis inclination sensor. The standard current can be selected from 4-20mA, 0-20mA, and 0-24mA. It can be output through RS232 and can be transmitted over a distance of 2000 meters. The operator only needs to collect the voltage value of the sensor to calculate the current tilt angle of the object. The built-in (MEMS) solid pendulum can be converted into the change of the inclination angle by measuring the change of the static gravity field.
    The product adopts MEMS sensor production technology, which can accurately compensate and correct temperature errors and linear errors. It has high accuracy, small size, high packaging technology, strong vibration resistance, built-in anti-radio frequency, and anti-electromagnetic interference circuit characteristics, especially suitable for underground applications in harsh industrial environments such as trenchless machinery.

    Features
    Two axis tilt monitoring
    Full range accuracy 0.005°, resolution 0.0007°
    Output 4~20mA, 0~20mA, 0~24mA (optional)
    Wide-voltage input DC 11~36V
    Wide temperature working -40~+85℃
    Range 0~±5/±10/±15/±30° (optional)
    High vibration resistance>20000g
    IP67 protection
    Can output RS232 at the same time, RS485 customizable
    Volume (107*55*27mm) (customizable)

    Applications
    Railway gauge ruler, gauge instrument
    Satellite solar antenna positioning
    High altitude work vehicle
    Mining machinery, oil logging equipment
    Medical equipment
    Hydraulic lifting platform
    Inclination monitoring
    Angle control of various construction machinery
    Inspection of bridges and dams

    Specifications

    Parameter Condition ER-TS-2288CU-5 ER-TS-2288CU-10 ER-TS-2288CU-15 ER-TS-2288CU-30 Unit
    Measuring range / ±5 ±10 ±15 ±30 °
    Measurement axis / X,Y axis X,Y axis X,Y axis X,Y axis /
    Zero temperature drift -40~85° ±0.0007 ±0.0007 ±0.0007 ±0.0007 °/℃
    Sensitivity temperature coefficient -40~85° ≤50 ≤50 ≤50 ≤50 ppm/℃
    Zero drift 0°output 4~20mA output -12mA, 0~20mA output -10mA, 0~24mA output -12mA mA
    Frequency response DC response 100 100 100 100 Hz
    Resolution Bandwidth5Hz 0.0007 0.0007 0.0007 0.0007 °
    Accuracy -40~85℃ 0.005 0.006 0.0065 0.007 °
    Long-term stability -40~85℃ <0.006 <0.007 <0.007 <0.008 °
    Power on start time / 0.2 0.2 0.2 0.2 s
    Response time / 0.01 0.01 0.01 0.01 s
    Average working time ≥45000 hours/time
    Impact resistant 20000g, 0.5ms, 3 times/axis
    Shock resistant 10grms, 10~1000Hz
    Insulation resistance ≥100MΩ
    Waterproof level IP67
    Cable Standard 1.5 m length, wear resistance, oil proof, wide temperature, shielding cable 6*0.3mm²
    Weight 250g (excluding boxes)
