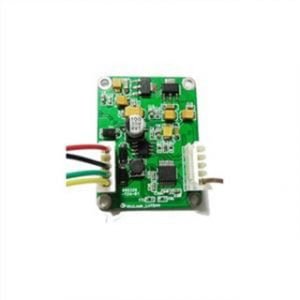

Voltage Type Double Axis Double Way Tilt Switch (Single Board)

Voltage Type Double Axis Double Way Tilt Switch (Single Board)

ER-TS-15 Feature:
1. Double axis tilt monitoring;
2. Range 0~±90° (optional);
3. Full range accuracy 0.1°, resolution 0.01°.

Voltage Type Double Axis Double Way Tilt Switch (Single Board)

Voltage Type Double Axis Double Way Tilt Switch (Single Board)

Get Price Now



    Share to:

    Introduction

    Voltage Type Double Axis Double Way Tilt Switch (Single Board)

    Introduction
    It is a high-performance voltage output type dual-axis four-way digital DIP switch with a measuring range of 0~±90°. When the dialing value is greater than the preset dialing threshold, the switch signal (output voltage=power supply voltage) will be output to drive the solenoid valve. It is worth noting that the alarm threshold has been calibrated at the factory, and the operator can also set it by himself.
    The tilt switch integrates an imported core unit and is used for horizontal security alarm and platform level monitoring related industries. The product adopts a transistor output circuit, which can drive a solenoid valve to close the hydraulic system, buzzer, alarm lamp, etc. It can automatically warn workers of safe construction, product design accuracy, temperature and linear compensation, and integrate comprehensive protection functions such as short circuit, instantaneous high voltage, polarity, and surge, which is suitable for various harsh industrial environments.

    Features
    Double axis tilt monitoring
    Full range accuracy 0.1°, resolution 0.01°
    Alarm threshold can be set by the user
    Input voltage DC 9~36V
    Wide temperature working -40~+85℃
    Range 0~±90° (optional)
    High vibration resistance>3500 g
    Industrial grade design
    IP67 protection level
    Switching value output (voltage), RS232 output meantime
    Volume (46*35*8mm) (customizable)

    Applications
    Railway gauge
    Satellite solar antenna positioning
    Tractor, deep tillage machinery
    Mining machinery, oil logging equipment
    Medical equipment
    Gimp leveling
    Hydraulic lifting platform
    Tilt based monitoring
    Various construction machinery angle control
    Inspection of bridges and dams

    Specifications

    Spec. Conditions ER-TS-15 Unit
    Measurement range / ±90 °
    Measuring axis / X, Y axis /
    Alarm axis / X, Y axis /
    Frequency response DC response 100 Hz
    Resolution Bandwidth 5Hz 0.01 °
    Accuracy -40~85℃ 0.1 °
    Long-term stability -40~85℃ 0.1 °
    Power on startup time / 0.5 S
    Output signal  Switching value (voltage) output, can be RS232, TTL optional at the same time
    Mean time between failures ≥55000 hour/time
    Shock resistance 3500g, 0.5ms, 3times/axis
    Anti-vibration 10grms, 10~1000Hz
    Insulation resistance ≥100MΩ
    Waterproofing grade IP67
    Cable Standard 1.5m length, wear-resistant, oil-proof, wide temperature, shielding cable 8*0.3mm²
    Weight 150g (without packing)
