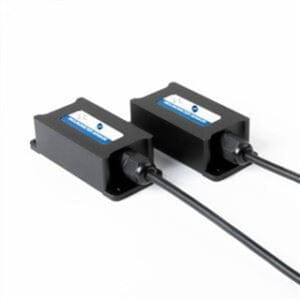

Relay Type Single-Axis Single-Way Tilt Switch

ER-TS-10 Features:
1. Range 0~±180°(optional);
2. High vibration resistance >3500 g;
3. Full range accuracy 0.1°, resolution 0.01°.

Relay Type Single-Axis Single-Way Tilt Switch

relay-type-single-axis-single-way-tilt-switch

Get Price Now



    Share to:

    Introduction

    Relay Type Single-Axis Single-Way Tilt Switch

    Introduction
    ER-TS-10 is a high performance relay output single-axis single-channel DIP switch. The measuring range of the product is 0~±180°, and a set of relay output circuit is built-in. When the inclination value is greater than the preset value, the alarm threshold will output the error contact relay signal (driving current 1A), and open the solenoid valve for corresponding hydraulic leg leveling. It is worth noting that the alarm threshold has been calibrated at the factory, and the operator can also set it by himself.
    The product integrates an imported core unit, and uses a transistor output circuit to drive a solenoid valve to close the hydraulic system, buzzer, and warning light. The product is used in industries related to horizontal security alarm and platform level monitoring. It can automatically warn workers of safe construction, product design accuracy, temperature and linear compensation, and integrate comprehensive protection functions such as short circuit, instantaneous high voltage, polarity, and surge, which is suitable for various harsh industrial environments.

    Features
    Single axis tilt monitoring
    Full range accuracy 0.1°, resolution 0.01°
    Alarm threshold can be set by the user
    Wide voltage input DC 9~36V
    Wide temperature working -40~+85℃
    Range 0~±180°(optional)
    High vibration resistance>3500 g
    Industrial grade design
    IP67 protection level
    Relay output (normally on, normally closed) and RS232 output at the same time
    Volume (90*40*27mm) (Customizable)

    Applications
    Railway gauge
    Satellite solar antenna positioning
    Tractor, deep tillage machinery
    Mining machinery, oil logging equipment
    Medical equipment
    Gimp leveling
    Hydraulic lifting platform
    Tilt based monitoring
    Various construction machinery angle control
    Inspection of bridges and dams

    Specifications

    Spec. Conditions ER-TS-10 Unit
    Measurement range / ±180 °
    Measuring axis / X axis /
    Alarm axis / X axis /
    Frequency response DC response 100 Hz
    Resolution Bandwidth 5Hz 0.01 °
    Accuracy -40~85℃ 0.1 °
    Long-term stability -40~85℃ 0.1 °
    Power on startup time / 0.5 S
    Output signal Relay (normally open and closed) output, can be RS232, TTL optional
    Mean Time between Failures ≥55000 hour/time
    Shock resistance 3500g, 0.5ms, 3times/axis
    Anti-vibration 10grms, 10~1000Hz
    Insulation resistance ≥100MΩ
    Waterproofing grade IP67
    Cable Standard 1.5m length, wear-resistant, oil-proof, wide temperature, shielding cable 6*0.3mm²
    Weight 150g (without packing)
