ER-TS-09 Features:
1. Wide voltage input DC 9~36V;
2. Range 0~±180°(optional);
3. Full range accuracy 0.1°, resolution 0.01°.

Relay Type Single-Axis Dual-Way Tilt Switch Single Board

Relay Type Single-Axis Dual-Way Tilt Switch Single Board

Get Price Now



    Share to:

    Introduction

    Relay Type Single-Axis Dual-Way Tilt Switch Single Board

    Introduction

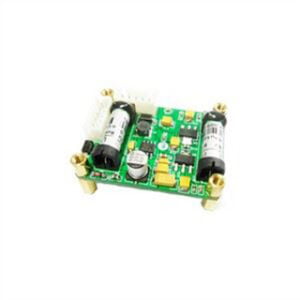

    ER-TS-09 single board is a high-performance relay output type single-axis dual-dip switch with a measuring range of 0~±180° and a built-in relay output circuit. When the inclination value is greater than the preset value, the alarm threshold will output the error contact relay signal (driving current 1A), and open the solenoid valve for corresponding hydraulic leg leveling. It is worth noting that the alarm threshold has been calibrated at the factory, and the operator can also set it by himself.
    The product integrates an imported core unit, and uses a transistor output circuit to drive a solenoid valve to close the hydraulic system, buzzer, and warning light. The product is used in industries related to horizontal security alarm and platform level monitoring. It can automatically warn workers of safe construction, product design accuracy, temperature and linear compensation, and integrate comprehensive protection functions such as short circuit, instantaneous high voltage, polarity, and surge, which is suitable for various harsh industrial environments.

    Features
    Single axis tilt monitoring
    Full range accuracy 0.1°, resolution 0.01°
    Alarm threshold can be set by the user
    Wide voltage input DC 9~36V
    Wide temperature working -40~+85℃
    Range 0~±180°(optional)
    High vibration resistance >3500 g
    Industrial grade design
    IP67 protection level
    Relay output (normally on, normally closed) and RS232 output at the same time
    Volume (46*35*8mm) (customizable)

    Applications
    Railway gauge
    Satellite solar antenna positioning
    Tractor, deep tillage machinery
    Mining machinery, oil logging equipment
    Medical equipment
    Hydraulic lifting platform
    Tilt based monitoring
    Various construction machinery angle control
    Inspection of bridges and dams
