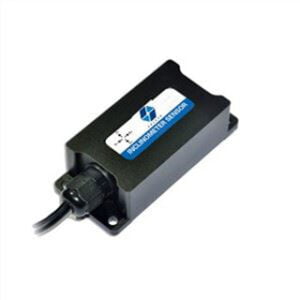

High Performance Relay Type Single-Axis Dual-Way Tilt Switch

High Performance Relay Type Single-Axis Dual-Way Tilt Switch

ER-TS-05 Features:
1. Range 0~±180°(optional);
2. Full range accuracy 0.1°, resolution 0.01°;
3. Wide operating temperature -40~+85℃.

High Performance Relay Type Single-Axis Dual-Way Tilt Switch

High Performance Relay Type Single-Axis Dual-Way Tilt Switch

Get Price Now



    Share to:

    Introduction

    High Performance Relay Type Single-Axis Dual-Way Tilt Switch

    Introduction
    ER-TS-05 is a high-performance relay output single-axis dual-channel DIP switch with a measuring range of 0~±180° and a built-in relay output circuit. When the inclination value is greater than the preset value, the alarm threshold will output the error contact relay signal (driving current 1A), and open the solenoid valve for corresponding hydraulic leg leveling. It is worth noting that the alarm threshold has been calibrated at the factory, and the operator can also set it by himself.
    The product integrates an imported core unit, and uses a transistor output circuit to drive a solenoid valve to close the hydraulic system, buzzer, and warning light. The product is used in industries related to horizontal security alarm and platform level monitoring. It can automatically warn workers of safe construction, product design accuracy, temperature and linear compensation, and integrate comprehensive protection functions such as short circuit, instantaneous high voltage, polarity, and surge, which is suitable for various harsh industrial environments.

    Features
    Uniaxial tilt monitoring
    Full range accuracy 0.1°, resolution 0.01°
    The alarm threshold can be set by the user
    Wide voltage input DC 9~36V
    Wide operating temperature -40~+85℃
    High vibration resistance >3500 g
    Range 0~±180°(optional)
    Industrial design
    IP67 protection class
    Relay output (normally on, normally closed) and RS232 output at the same time
    Volume (90*40*27mm) (Customizable)

    Applications
    Railway gauge
    Satellite solar antenna positioning
    Tractors, deep-ploughing machines
    Mining machinery, oil logging equipment
    Medical equipment
    Hydraulic lifting platform
    Tilt based monitoring
    Angle control of various construction machinery
    Inspection of bridges and dams

    Specifications

    Parameters Conditions ER-TS-05 Unit
    Measuring range / ±180 °
    Measurement of shaft / X axis /
    Alarm shaft / X axis /
    Frequency response DC response 100 Hz
    The resolution of the Bandwidth 5Hz 0.01 °
    Precision -40~85℃ 0.1 °
    Long-term stability -40~85℃ 0.1 °
    Power on start time / 0.5 S
    The output signal Relay (normally on, normally off) output, RS232, TTL optional
    Average working time ≥55,000 hours/time
    Impact resistant 3500g, 0.5ms, 3 times/shaft
    Shock resistant 10GRMS, 10~1000Hz
    Insulation resistance ≥100MΩ
    Waterproof level IP67
    Cable Standard 1.5m length, wear resistance, oil proof, wide temperature, shielding cable 8*0.3mm²
    Weight 150g (excluding boxes)

    Electrical parameters

    Parameters Condition Min Typical values Max Unit
    The power supply voltage / 9 12 36 V
    Working current / / 20 / mA
    Normally closed maximum current / / 1000 / mA
    Working temperature / -40 / 85
    Storage temperature / -55 / 100
