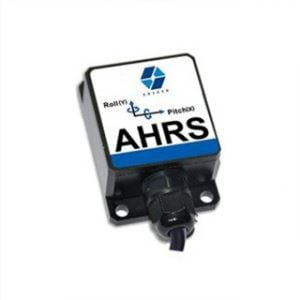

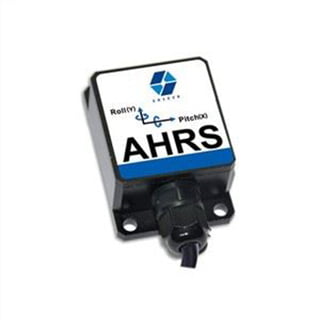

ER-TS-5240VO Features:
1. Two axis tilt monitoring;
2. Output 0~5V, 0.5V~4.5V, 0~10V optional;
3. Full range accuracy 0.3°, resolution 0.05°.

Voltage Type Two Axis Tilt Sensor

Voltage Type Two Axis Tilt Sensor

Get Price Now



    Share to:

    Introduction

    Voltage Type Two Axis Tilt Sensor

    Introduction
    ER-TS-5240VO Voltage Two Axis Tilt Sensor is a low-cost biaxial voltage output inclination sensor with output voltage 0~5V, 0.5~4.5V, and optional 0~10V. It is mainly aimed at the application market where volume and cost are highly limited.
    Due to the built-in micro-electromechanical production process inclination device, the product is small in size, low in power consumption, industrial-grade working temperature is -40~+85℃.
    With the non-contact measuring principle, can output the current attitude and inclination in real time, easy to use and no need to retrieve the relative changes of the two surface installation. The product has the characteristics of small volume, anti-external electromagnetic interference, strong ability to withstand shock, which is the ideal choice of industrial equipment, platform attitude measurement.

    Features
    Two axis tilt monitoring
    Full range accuracy 0.3°, resolution 0.05°
    Output 0~5V, 0.5~4.5V, 0~10V optional
    Wide voltage input DC 9~36V
    Wide temperature working -40~+85℃
    Measuring range: 0~±90°(optional)
    High vibration resistance>2500g
    IP67 protection
    Industrial design
    Small volume (55*37*24mm) (customizable)

    Applications
    Intelligent power transmission line
    High altitude working vehicle
    Tractor, deep farming machinery
    Mining machinery, oil logging equipment
    Medical equipment
    Hydraulic lifting platform
    Inclination monitoring
    Angle control of various construction machinery
    Inspection of bridges and dams

    Specifications

    Parameter Condition ER-TS-5240VO-10 ER-TS-5240VO-30 ER-TS-5240VO-60 ER-TS-5240VOI-90 Unit
    Measuring range / ±10 ±30 ±60 ±90 °
    Measuring axis / X, Y Axis X, Y Axis X, Y Axis X, Y Axis /
    Zero temperature drift -40~85° ±0.05 ±0.05 ±0.05 ±0.05 °/℃
    Sensitivity temperature coefficient -40~85° ≤200 ≤200 ≤200 ≤200 ppm/℃
    Zero drift 0°output 0~5V output -2.5V, 0~10V output -5V V
    Frequency response DC response 100 100 100 100 Hz
    Resolution Bandwidth 5Hz 0.05 0.05 0.05 0.05 °
    Accuracy -40~85℃ 0.3 0.3 0.3 0.3 °
    Long-term stability -40~85℃ <0.32 °
    Power on start time / 0.2 0.2 0.2 0.2 s
    Response time / 0.01 0.01 0.01 0.01 s
    Output mode  0~5V, 0.5~4.5V, 0~10V
    Average working time ≥55,000 hours/time
    Impact resistant 2500g, 0.5ms, 3 times/axis
    Shock resistant 10grms, 10~1000Hz
    Insulation resistance ≥100MΩ
    Waterproof level IP67
    Cable Standard 1.5 m length, wear resistance, oil proof, wide temperature, shielding cable 6*0.3mm²
    Weight 55g (excluding boxes)
