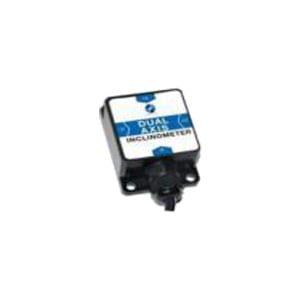

Low Cost Single Axis Tilt Sensor CANopen Output
Introduction
CANopen output dual-axis inclinometer is a product specially developed for industrial field control. The product has a built-in micro-electro-mechanical production process tilt unit, which has the characteristics of small size, low power consumption, and high consistency and stability of the micro-electro-mechanical process. It is an industrial-grade tilt module with a working temperature of -40~+85°C.
The product uses non-contact measurement of the original quantity, and can output the current attitude and inclination in real time. The operation is simple, and there is no need to retrieve the two faces of relative changes. It has strong resistance to external electromagnetic interference and can adapt to long-term work in harsh industrial environments, making it an ideal choice for industrial automation control and platform attitude measurement.
Features
Single axis tilt monitoring
Full range accuracy 0.3°, resolution 0.05°
Output frequency 5~100HZ (optional)
Input voltage DC 5V
Wide temperature working -40~+85℃
Measuring range: 0~±180° (optional)
High vibration resistance >2500 g
Baud rate 100K-500K bps
IP67 Protection
Output: CANopen
Small volume (55*37*24mm) (customizable)
Applications
High voltage wire tower monitoring
Satellite solar antenna positioning
High tractor, deep farming machinery and mining machinery
Oil logging equipment
Medical equipment
Tripod head levelling
Hydraulic lifting platform
Inclination monitoring
Angle control of various construction machinery
Inspection of bridges and dams
Specifications
Parameters | Conditions | ER-TS-5145CA-10 | ER-TS-5145CA-30 | ER-TS-5145CA-60 | ER-TS-5145CA-90 | Unit |
Measuring range | / | ±10 | ±30 | ±60 | ±90 | ° |
Measuring axis | / | X | X | X | X | / |
Zero temperature drift | -40~85° | ±0.05 | ±0.05 | ±0.05 | ±0.05 | °/℃ |
Sensitivity temperature coefficient | -40~85° | ≤200 | ≤200 | ≤200 | ≤200 | ppm/℃ |
Frequency response | DC response | 100 | 100 | 100 | 100 | Hz |
Resolution | Bandwidth 5Hz | 0.05 | 0.05 | 0.05 | 0.05 | ° |
Accuracy | -40~85℃ | 0.3 | 0.3 | 0.3 | 0.3 | ° |
Long term stability | -40~85℃ | <0.32 | ° | |||
Power on time | / | 0.2 | 0.2 | 0.2 | 0.2 | s |
Response time | / | 0.01 | 0.01 | 0.01 | 0.01 | s |
Rate | 5Hz output, 15Hz, 35Hz, 50Hz, 100HZ can set | |||||
Output signal | CAN | |||||
Average failure-free work | ≥55000hours/time | |||||
Shock resistance | 2500g, 0.5ms, 3 times/axis | |||||
Anti-vibration | 10grms, 10~1000Hz | |||||
Insulation Resistance | ≥100MΩ | |||||
Waterproof level | IP67 | |||||
Cables | Standard 1.5M length, wearproof, grease proofing, wide temperature, shielded cables4*0.2mm² | |||||
Weight | 75g (without packing box) |
