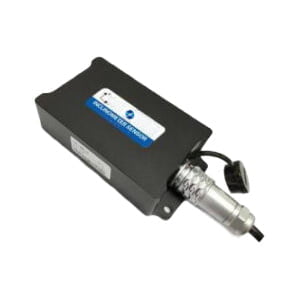

ER-TS-2188CU Features:
1. Single axis tilt monitoring;
2. Full range accuracy 0.005°, resolution 0.0007°;
3. Output interface 4~20mA, 0~20mA, 0~24mA (optional).

Current Output Single Axis Tilt Sensor

Current Output Single Axis Tilt Sensor

Get Price Now



    Share to:

    Introduction

    Current Output Single Axis Tilt Sensor

    Introduction
    It is a standard industrial high-precision current output single-axis tilt sensor, with standard currents of 4-20mA, 0-20mA, 0-24mA to choose, and RS232 output, RS485 customizable, which can transmit 2000 meters away. Users only need to collect the sensor voltage value and can calculate the current object tilt angle. The built-in (MEMS) solid pendulum, by measuring changes in the static gravitational field, translates into changes in inclination.
    The product adopts MEMS sensor production technology to accurately compensate and correct temperature errors and linear errors. It has the advantages of high accuracy, small size, high packaging process, with stand strong vibration, built-in anti-radio frequency, anti-electromagnetic interference circuit, especially suitable for the application of underground trenchless machinery and other harsh industrial environments.

    Features
    Single axis tilt monitoring
    Full range accuracy 0.005°, resolution 0.0007°
    Output interface 4~20mA, 0~20mA, 0~24mA (optional)
    Wide-voltage input DC 11~36V
    Wide temperature working -40~+85℃
    Range 0~±5/±15/±30° (optional)
    High vibration resistance>20000g
    IP67 protection
    Can output RS232 at the same time, RS485 customizable
    Volume (107*55*27mm) (customizable)

    Applications
    Railway gauge ruler, gauge instrument
    Satellite solar antenna positioning
    High altitude work vehicle
    Mining machinery, oil logging equipment
    Medical equipment
    Tripod head levelling
    Hydraulic lifting platform
    Inclination monitoring
    Angle control of various construction machinery
    Inspection of bridges and dams

    Specifications

    Parameter Condition ER-TS-2188CU-5 ER-TS-2188CU-10 ER-TS-2188CU-15 ER-TS-2188CU-30 Unit
    Measuring range / ±5 ±10 ±15 ±30 °
    Measurement axis Y-axis is optional X axis X axis X axis X axis /
    Zero temperature drift -40~85° ±0.0007 ±0.0007 ±0.0007 ±0.0007 °/℃
    Sensitivity temperature coefficient -40~85° ≤50 ≤50 ≤50 ≤50 ppm/℃
    Zero drift 0°output 4~20mA output-12mA, 0~20mA output -10mA, 0~24mA output -12mA mA
    Frequency response DC response 100 100 100 100 Hz
    Resolution Bandwidth5Hz 0.0007 0.0007 0.0007 0.0007 °
    Accuracy -40~85℃ 0.005 0.006 0.0065 0.007 °
    Long-term stability -40~85℃ <0.006 <0.007 <0.007 <0.008 °
    Power on start time / 0.2 0.2 0.2 0.2 s
    Response time / 0.01 0.01 0.01 0.01 s
    Average working time ≥45000 hours/time
    Impact resistant 20000g, 0.5ms, 3 times/axis
    Shock resistant 10grms, 10~1000Hz
    Insulation resistance ≥100MΩ
    Waterproof level IP67
    Cable Standard 1.5 m length, wear resistance, oil proof, wide temperature, shielding cable 6*0.3mm²
    Weight 250g (excluding boxes)
