Low Cost Wireless Tilt Sensor

Low Cost Wireless Tilt Sensor

ER-TS-4296 Features:
1. Biaxial tilt monitoring;
2. Input voltage DC 9~36V;
3. Full range accuracy 0.1°, resolution 0.01°.

Low Cost Wireless Tilt Sensor

Low Cost Wireless Tilt Sensor

Get Price Now



    Share to:

    Introduction

    Low Cost Wireless Tilt Sensor

    Introduction

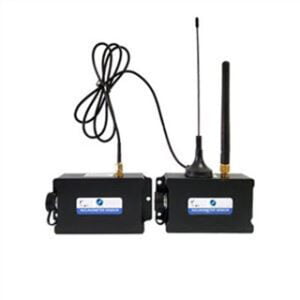

    ER-TS-4296 is a high-performance tilt meter based on Bluetooth and ZigBee (optional) wireless transmission technology. Its measurement range is 0~±90°, accuracy: 0.1, resolution: 0.01°. It is suitable for safety monitoring systems in industrial fields, construction and civil engineering 50 meters, ZigBee<450 m.
    The wireless digital signal transmission method is compact in structure, small in size, and simple to use, which eliminates the cumbersome wiring and noise interference caused by long cable transmission. The wireless sensor has the characteristics of industrial-grade design, strong measurement accuracy and strong anti-interference ability. It can form a huge wireless network to support thousands of measurement points for simultaneous tilt angle monitoring, and support professional computer software for real-time data measurement and recording.

    Features
    Biaxial tilt monitoring
    Full range accuracy 0.1°, resolution 0.01°
    Industrial grade design
    Input voltage DC 9~36V
    Wide temperature working -40~+85℃
    Range 0~±90°(optional)
    High vibration resistance>3500 g
    The baud rate is adjustable from 2400~115200
    IP67 protection level
    Wireless transmission mode: Bluetooth, ZigBee optional
    Small volume (107*55*27mm) (customizable)

    Applications
    High voltage power line tower pole monitoring
    Satellite solar antenna positioning
    Aerial work vehicle
    Mining machinery, oil logging equipment
    Medical equipment
    Hydraulic lifting platform
    Tilt based monitoring
    Various construction machinery angle control
    Bridge dam, building monitoring

    Specifications

    Parameter Condition ER-TS-4296-10 ER-TS-4296-30 ER-TS-4296-60 ER-TS-4296-90 Unit
    Measuring range / ±10 ±30 ±60 ±90 °
    Measurement of shaft / X, Y Axis X, Y Axis X, Y Axis X, Y Axis /
    Zero temperature drift -40~85° ±0.01 ±0.01 ±0.01 ±0.01 °/℃
    Sensitivity temperature coefficient -40~85° ≤150 ≤150 ≤150 ≤150 ppm/℃
    Frequency response DC response 100 100 100 100 Hz
    ResolutioRn Bandwidth 5Hz 0.01 0.01 0.01 0.01 °
    Precision -40~85℃ 0.1 0.1 0.1 0.1 °
    Long-term stability -40~85℃ <0.12 °
    Power on start time / 0.2 0.2 0.2 0.2 s
    The response time / 0.05 0.05 0.05 0.05 s
    Rate 2450MHZ (default), 2450~2480 adjustable
    The output signal Bluetooth, Zigbee can be ordered
    Average working time ≥55,000 hours/time
    Impact resistant 3500 g, 0.5 ms, 3 times/shaft
    Shock resistant 10rgms, 10~1000Hz
    Insulation resistance ≥100 mΩ
    Waterproof level IP67
    Weight 280g (excluding boxes)

    Application Techniques

    1.The Difference between Tilt Sensor and Gyro Sensor

    2.What’s a Tilt Sensor?

    3.How to install the tilt sensor?

    4.What are Tilt Switches and Tilt Sensors?

    5.How to Use the Tilt Sensor and How to Install It?

    6.Do you Know the Working Principle of Inclinometer ?
