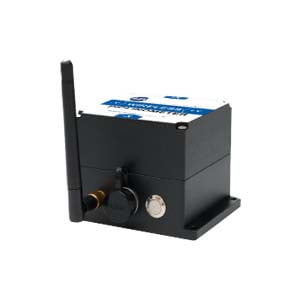

Industrial Grade Wireless Transmission Tilt Sensor

ER-TS-52400 Features:
1. Accuracy: 0.3°, resolution: 0.05°;
2. Biaxial monitoring (uniaxial optional);
3. Ultra-low power consumption.

Share to:

Introduction

Industrial Grade Wireless Transmission Tilt Sensor

Introduction
ER-TS-52400 protocol is an ultra-low power, small size, and high performance wireless tilt sensor for industrial applications where users have no power supply or real-time dynamic measurement of object attitude angle. Based on the Internet of things technology Bluetooth, Zigbee (optional) wireless transmission technology, all internal circuits are optimized design, good long-term stability and small zero drift, can automatically enter the low-power sleep mode, so as to get rid of the dependence on the use of the environment; Industrial equipment wireless transmission distance: Bluetooth<50 meters, Zigbee<1600 meters.
Compact product structure, precision design, for temperature and linearity compensation again, integrated with short circuit, instant high pressure, polarity, surge and other comprehensive protection functions, simple and easy to use, and wireless digital signal transmission mode eliminates the tedious wiring brought by long cable transmission, noise interference; Industrial-grade design has extremely high measurement accuracy and anti-interference ability, wireless sensor nodes can form huge wireless networks, supporting thousands of monitoring points for simultaneous inclination monitoring, supporting the professional computer software, no need for field survey, real-time data measurement and record the state of the measured object; Suitable for the industrial site, old dilapidated houses, ancient buildings, civil engineering, various tower tilt deformation remote real-time monitoring and analysis of the needs of the safety monitoring system.

Product property
Biaxial monitoring (uniaxial optional)
Measurement range: double axis ±90°, single axis ±180° (360° optional)
Accuracy: 0.3°, resolution: 0.05°
Volume (94*74*64mm) (customizable)
Ultra-low power consumption
Built-in rechargeable lithium battery power supply
Wide temperature work:-40~+ 85℃
Protection level: IP67

Product application
Billboard monitoring
Bridge construction
PTZ levelling
Ship attitude measurement
High speed rail roadbed tunnel monitoring
Satellite solar antenna positioning
Medical equipment
Various engineering machinery angle control

Product performance indicators

Parameters	Condition	ER-TS-52400				Unit
Measuring range	/	±90				°
Measuring axis	/	X,Y axis				/
Zero point temperature drift	-40～85°	±0.05				°/℃
Sensitivity temperature coefficient	-40～85°	≤150				ppm/℃
Frequency response	DC response	100				Hz
Resolution	/	0.05				°
Accuracy	-40～85℃	0.3				°
Long-term stability	-40～85℃	<0.35				°
Power-on startup time	/	0.2	0.2	0.2	0.2	s
Response time	/	0.05	0.05	0.05	0.05	s
Wireless frequency	2460 MHZ (default), 2405-2480 adjustable
Transmission distance	1.6KM
Built-in battery capacity	6000mAh
Average operation time	≥55,000 hrs / time
Shock resistance	20000g,0.5ms, 3 times / axis
Anti-vibration	10grms, 10~1000Hz
Insulation resistance	≥100MΩ
Waterproof rating	IP67
Weight	450g (excluding the package box)

Electrical indicators
Parameters	Condition	Min.	Typical value	Max.	Unit
Power supply voltage	Standard	4.7	5	5.5	V
Current consumption	Working mode	/	35	/	mA
Current consumption	Sleep mode	/	5	/	mA
Built-in battery capacity	/	/	5000	/	mAh
Working temperature	/	-40	/	+85	℃
Storage temperature	/	-55	/	+125	℃

Mechanical properties
Connector	Waterproof Aviation Socket
Protection level	IP67
Shell material	Aluminum alloy grinding sand oxidation
Installation	Four M4 screws
