CANopen Output Dual Axis Tilt Sensor

​CANopen Output Dual Axis Tilt Sensor

ER-TS-4255CA1 Features:
1. Dual axis inclinometer;
2. Full range accuracy 0.1°, resolution 0.01°;
3. Output frequency 5~100HZ optional.

​CANopen Output Dual Axis Tilt Sensor

CANopen Output Dual Axis Tilt Sensor

Get Price Now



    Share to:

    Introduction

    CANopen Output Dual Axis Tilt Sensor

    Introduction

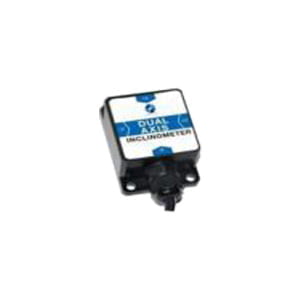

    ER-TS-4255CA1 is a CAN open output dual axis tilt meter developed for industrial fields control. The latest MEMS production process tilt unit is built-in, which has the characteristics of small size and low power consumption. And the consistency and stability of the MEMS process is very high, and its working temperature can reach industrial grade -40℃~+85℃, which is a very cost-effective product-high tilt angle module.
    The product uses non-contact measurement of the original quantity, and can output the current attitude inclination in real time. Simple to use, no need to retrieve the two surfaces of the phase change installation. In addition, it has strong resistance to external electromagnetic interference and can adapt to long-term work in harsh industrial environments, which is an ideal choice for industrial automation control and platform attitude measurement.

    Features
    Dual axis inclinometer
    Full range accuracy 0.1°, resolution 0.01°
    Output frequency 5~100HZ optional
    Input voltage DC 5V (9-36V can be customized)
    Wide temperature working -40~+85℃
    Measuring range: 0~90°(optional)
    High vibration resistance>3500 g
    Baud rate 100K~500K bps
    IP67 protection
    Output: CANopen
    Small volume (55*37*24mm) (customizable)

    Applications
    High voltage power line tower pole monitoring
    Satellite solar antenna positioning
    Aerial work vehicle
    Mining machinery, oil logging equipment
    Medical equipment
    Hydraulic lifting platform
    Tilt based monitoring
    Various construction machinery angle control
    Inspection of bridges and dams

    Specifications

    Spec Condition ER-TS-4255CA1-10 ER-TS-4255CA1-30 ER-TS-4255CA1-60 ER-TS-4255CA1-90 Unit
    Measuring range / ±10 ±30 ±60 ±90 °
    Measuring axis / X, Y Axis X, Axis X, Y Axis X, Y Axis /
    Zero temperature
    drift
    -40~85° ±0.01 ±0.01 ±0.008 ±0.01 °/℃
    Sensitivity  temperature
    coefficient
    -40~85° ≤150 ≤150 ≤150 ≤150 ppm/℃
    Frequency response DC response 100 100 100 100 Hz
    Resolution Bandwidth 5Hz 0.01 0.01 0.01 0.01 °
    Accuracy -40~85℃ 0.1 0.1 0.1 0.1 °
    Long term stability -40~85℃ <0.12 °
    Power on start time / 0.2 0.2 0.2 0.2 s
    The response time / 0.01 0.01 0.01 0.01 s
    Rate 5Hz Output, 15Hz, 35Hz, 50Hz, 100HZ can set
    The output signal CAN can order
    Average working time ≥55000 hours/time
    Impact resistant 3500g, 0.5ms, 3times/axis
    Shock resistant 10grms, 10~1000Hz
    Insulation resistance ≥100MΩ
    Waterproof level IP67
    Cable Standard 1.5M length, wearproof, grease proofing, wide temperature, shielded cables 4*0.2mm²
    Weight 75g (excluding boxes)
