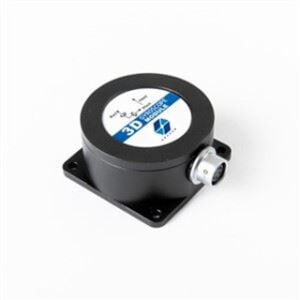

Two Axis Digital Output Tilt Sensor

Dynamic High-Precision Biaxial Current Tilt Sensor

ER-TS-5278CU Features:
1. Two axis tilt monitoring;
2. Stable accuracy of 0.05°;
3. Dynamic measurement accuracy of 0.3°.

Dynamic High-Precision Biaxial Current Tilt Sensor

Two Axis Digital Output Tilt Sensor

Get Price Now



    Share to:

    Introduction

    Dynamic High-Precision Biaxial Current Tilt Sensor

    Introduction
    ER-TS-5278CU current two-axis tilt sensor is a new generation of high-performance, small-sized, high-precision inclination sensor in complex movements. The dynamic measurement accuracy is 0.3°, the stability accuracy is 0.05°, and the temperature drift is 0.01°/℃. There are 4-20mA output modes, 0-20mA standard interface can be selected, easy to integrate into the user control system.
    The product has a built-in MCU control system, vertical gyroscope and accelerometer, and integrated attitude solver. Using the optimal digital filtering algorithm, noise reduction, with the N-order Kalman filtering algorithm, through nonlinear compensation, quadrature compensation, temperature drift and other compensation to eliminate error sources and improve measurement accuracy. It can accurately output objects in strong vibration and motion environment posture angle.

    Features
    Two axis tilt monitoring
    Dynamic measurement accuracy of 0.3°
    Stable accuracy of 0.05°
    Vertical gyroscope/N-order Kalman filter
    Input voltage DC 9~36V
    Wide temperature working -40~+85℃
    Range 0~±90°(optional)
    High nonlinear compensation
    Orthogonal compensation
    Temperature compensation
    Baud rate 2400~115200 (adjustable)
    Protection level IP67
    Output 4~20mA, 0~20mA (optional)
    Small volume (60*59*29mm) (customizable)

    Applications
    Balance car
    Agricultural machinery, rotary drilling rig
    AGV car
    Mining machinery, oil logging equipment
    Medical equipment
    Tilting leveling
    Hydraulic lifting platform
    Inclination monitoring
    Angle control of various construction machinery
    Inspection of bridges and dams

    Specifications

    Parameter Condition ER-TS-5278CU-10 ER-TS-5278CU-30 ER-TS-5278CU-60 ER-TS-5278CU-90 Unit
    Measuring range / ±10 ±30 ±60 ±90 °
    Measurement of shaft / X, Y Axis X, Y Axis X, Y Axis X, Y Axis /
    Zero temperature drift -40~85° ±0.01 ±0.01 ±0.01 ±0.01 °/℃
    Sensitivity temperature coefficient -40~85° ≤200 ≤200 ≤200 ≤200 ppm/℃
    Zero drift 0°output 12 12 12 12 mA
    Frequency response DC response 100 100 100 100 Hz
    Resolution Bandwidth 5Hz 0.05 0.05 0.05 0.05 °
    Accuracy -40~85℃ 0.3 0.3 0.3 0.3 °
    Long-term stability -40~85℃ <0.35 °
    Power on start time / 0.2 0.2 0.2 0.2 s
    Response time / 0.01 0.01 0.01 0.01 s
    Output signal 4~20mA
    Average working time ≥55,000 hours/time
    Impact resistant 25000g, 0.5ms, 3 times/axis
    Shock resistant 10grms, 10~1000Hz
    Insulation resistance ≥100MΩ
    Waterproof level IP67
    Cable Standard 1.5 m length, wear resistance, oil proof, wide temperature, shielding cable 4*0.3mm²
    Weight 180g (excluding boxes)
