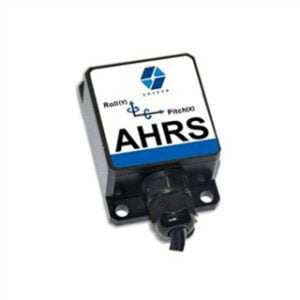

CANopen Output Two Axis Tilt Sensor

CANopen Output Two Axis Tilt Sensor

ER-TS-5245CA Features:
1. Two axis tilt monitoring;
2. Full range accuracy 0.3°, resolution 0.05°;
3. Output frequency 5~100HZ (optional).

CANopen Output Two Axis Tilt Sensor

CANopen Output Two Axis Tilt Sensor

Get Price Now



    Share to:

    Introduction

    CANopen Output Two Axis Tilt Sensor

    Introduction
    ER-TS-5245CA CAN Two Axis Tilt Meter is developed for industrial field control. The built-in MEMS production process inclination unit has the advantages of small size, low power consumption, and high MEMS process consistency and stability. The working temperature reaches industrial grade -40~+85℃, which is a cost-effective tilt angle module.
    The product adopts non-contact measurement of the original quantity, which can output the current attitude and inclination in real time. It is easy to operate, and does not need to look for two sides with phase changes, has strong resistance to external electromagnetic interference, and can adapt to long-term work in harsh industrial environments, so it is an ideal choice for industrial automation control and platform attitude measurement.

    Features
    Two axis tilt monitoring
    Full range accuracy 0.3°, resolution 0.05°
    Output frequency 5~100HZ (optional)
    Input voltage DC 5V
    Wide temperature working -40~+85℃
    Measuring range: 0~±90°(optional)
    High vibration resistance>2500 g
    Baud rate 100K-500K bps
    IP67 protection
    Output: CANopen
    Small volume (55*37*24mm) (customizable)

    Applications
    High voltage wire tower monitoring
    Satellite solar antenna positioning
    High tractor, deep farming machinery, mining machinery
    Oil logging equipment medical equipment
    Hydraulic lifting platform
    Inclination monitoring
    Angle control of various construction machinery
    Inspection of bridges and dams

    Specifications

    Parameters Conditions ER-TS-5245CA-10 ER-TS-5245CA-30 ER-TS-5245CA-60 ER-TS-5245CA-90 Unit
    Measuring range / ±10 ±30 ±60 ±90 °
    Measuring axis / X, Y Axis X, Y Axis X, Y Axis X, Y Axis /
    Zero temperature drift -40~85° ±0.05 ±0.05 ±0.05 ±0.05 °/℃
    Sensitivity  temperature coefficient -40~85° ≤200 ≤200 ≤200 ≤200 ppm/℃
    Frequency response DC response 100 100 100 100 Hz
    Resolution Bandwidth 5Hz 0.05 0.05 0.05 0.05 °
    Accuracy -40~85℃ 0.3 0.3 0.3 0.3 °
    Long term stability -40~85℃ <0.32 °
    Power on time / 0.2 0.2 0.2 0.2 s
    Response time / 0.01 0.01 0.01 0.01 s
    Rate 5Hz output, 15Hz, 35Hz, 50Hz, 100HZ can set
    Output signal CAN
    Average failure-free work ≥55000hours/time
    Shock resistance 2500g,0.5ms,3 times/axis
    Anti-vibration 10grms, 10~1000Hz
    Insulation Resistance ≥100MΩ
    Waterproof level IP67
    Cables Standard 1.5M length, wearproof, grease proofing, wide temperature, shielded cables4*0.2mm²
    Weight 75g (without packing box)
