Digital Wireless Transmission Dual-axis Tilt Sensor

Digital Wireless Transmission Dual-axis Tilt Sensor

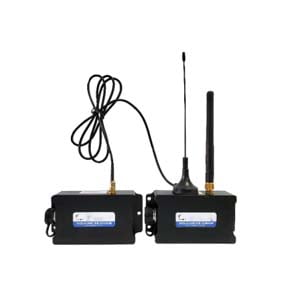

ER-TS-5296 Features:
1. Accuracy: 0.1°, resolution: 0.01°;
2. Dual-axis inclination monitoring (single-axis optional);
3. Frequency response: 100HZ.

Digital Wireless Transmission Dual-axis Tilt Sensor

Digital Wireless Transmission Dual-axis Tilt Sensor

Get Price Now



    Share to:

    Introduction

    Digital Wireless Transmission Dual-axis Tilt Sensor
    ER-TS-5296 is based on Bluetooth, Zigbee (optional) wireless transmission technology of high performance sensor, the series of wireless tilt sensor measurement range of ±90°, accuracy: 0.1°, resolution: 0.01°, optional, suitable for industrial site, building, civil engineering security monitoring system. Industrial equipment wireless transmission distance: Bluetooth<50 meters, Zigbee<450 meters.
    The product has the advantages of compact structure, small size, simple and convenient use, wireless digital signal transmission mode eliminates the tedious wiring and noise interference caused by long cable transmission; Industrial-grade design has extremely high measurement accuracy and anti-interference ability, wireless sensor nodes can form a huge wireless network, supporting thousands of measurement points at the same time for inclination monitoring, supporting professional computer software, real-time data measurement and recording.

    Features
    Dual-axis inclination monitoring (single-axis optional)
    Frequency Response: 100HZ
    Output mode: Bluetooth, Zigbee (optional)
    Wide voltage input: DC 9~36V (DC5V can be customized)
    Volume: (107*55*27mm) (customizable)
    High vibration resistance: >3500g
    Measurement Range: ±0~±90° (Customizable)
    Baud rate: 2400~115200 (optional)
    Wide temperature operation: -40~+85°C
    Protection level: IP67

    Application
    Railway locomotive monitoring
    Vehicle undercarriage monitoring
    Precision machine tool level control
    PTZ levelling
    Ship attitude measurement
    Precision laser platform equipment
    Based on tilt monitoring
    Satellite solar antenna positioning
    Medical equipment
    Various engineering machinery angle control

    Product performance indicators

    Parameters Condition ER-TS-5296-10 ER-TS-5296-30 ER-TS-5296-60 ER-TS-5296-90 Unit
    Measuring range / ±10 ±30 ±60 ±90 °
    Measuring axis / X,Y axis X,Y axis X,Y axis X,Y axis /
    Zero point temperature drift -40~85° ±0.0005 ±0.01 ±0.01 ±0.01 °/℃
    Sensitivity temperature coefficient -40~85° ≤150 ≤150 ≤150 ≤150 ppm/℃
    Frequency response DC response 100 100 100 100 Hz
    Resolution Bandwidth 5HZ 0.01 0.01 0.01 0.01 °
    Accuracy -40~85° 0.1 0.1 0.1 0.1 °
    Long-term stability -40~85° <0.12 °
    Power-on startup time / 0.2 0.2 0.2 0.2 s
    Response time / 0.05 0.05 0.05 0.05 s
    Wireless frequency 2460 MHZ (default), 2405-2480 adjustable
    Output signal Bluetooth, Zigbee can be ordered
    Built-in battery capacity 6000mAh
    Average operation time ≥55,000 hrs / time
    Shock resistance 3500g, 0.5ms, 3 times / axis
    Anti-vibration 10grms, 10~1000Hz
    Insulation resistance ≥100MΩ
    Waterproof rating IP67
    Weight 280g (excluding the package box)
    Electrical indicators
    Parameters Condition Min. Typical value Max. Unit
    Power supply voltage / 9 12 36 V
    Current consumption Working mode 45 60 150 mA
    Sleep mode / 30 /
    Built-in battery capacity / -40 / +85 mAh
    Working temperature / -40 / +85
    Storage temperature / -55 / +125
    Mechanical properties
    Connector Lead (1.5m) or waterproof airline socket (customized)
    Protection level IP67
    Shell material Aluminum alloy grinding sand oxidation
    Installation Three M4 screws
