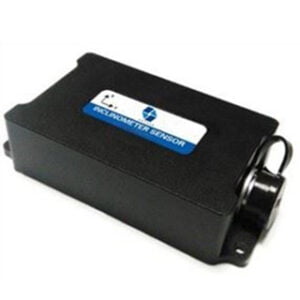

Digital Type Two Axis Tilt Sensor

Digital Type Two Axis Tilt Sensor

ER-TS-3266DI Features:
1. Dual axis tilt monitoring;
2. Output frequency 5~100HZ (optional);
3. Full range accuracy 0.01°, resolution 0.001°.

Digital Type Two Axis Tilt Sensor

Digital Type Two Axis Tilt Sensor

Get Price Now



    Share to:

    Introduction

    Digital Type Two Axis Tilt Sensor

    Introduction
    ER-TS-3266DI is a serial dual-axis inclinometer designed specifically for industrial control using MEMS technology and digital output. Built-in high-precision16bit A/D differential converter, through N filtering algorithm, which can measure the angle of sensor output relative to the horizontal tilt and pitch tilt. The output interfaces RS485, RS232, RS422, TTL, CAN, MODBUS are optional.
    The product is equipped with a high-precision digital sensor, which can correct the temperature drift of the sensor according to the monitoring temperature change of the built-in temperature sensor to ensure the repeatability of the product in low and high temperature environments. The corresponding output frequency is 100Hz. The finished product has reliable and stable performance, good scalability, and a variety of output options, which are suitable for various industrial control environments.

    Features
    Dual axis tilt monitoring
    Full range accuracy 0.01°, resolution 0.001°
    Output frequency 5~100HZ (optional)
    Wide voltage input DC 9~36V
    Wide temperature working -40~+85℃
    Measuring range: 0~±90° (optional)
    High vibration resistance>20000g
    Baud rate 2400~115200 (adjustable)
    IP67 protection
    Can output RS232/RS485/TTL/MODBUS (optional)
    Small volume (90*40*27mm) (customizable)

    Applications
    Railway gauge ruler, gauge instrument
    Satellite solar antenna positioning
    AGV car
    Mining machinery, oil logging equipment
    Medical equipment
    Hydraulic lifting platform
    Inclination monitoring
    Angle control of various construction machinery
    Inspection of bridges and dams

    Specifications

    Parameter Condition ER-TS-3266DI-10 ER-TS-3266DI-30 ER-TS-3266DI-60 ER-TS-3266DI-90 Unit
    Measuring range / ±10 ±30 ±60 ±90 °
    Measurement axis / X, Y axis X, Y axis X, Y axis X, Y axis /
    Zero temperature drift -40~85° ±0.008 ±0.008 ±0.008 ±0.008 °/℃
    Sensitivity temperature coefficient -40~85° ≤100 ≤100 ≤100 ≤100 ppm/℃
    Frequency response DC response 100 100 100 100 Hz
    Resolution / 0.001 0.001 0.001 0.001 °
    Accuracy -40~85℃ 0.01 0.02 0.03 0.05 °
    Long-term stability -40~85℃ <0.013 <0.022 <0.031 <0.054 °
    Power on start time / 0.2 0.2 0.2 0.2 s
    Response time / 0.01 0.01 0.01 0.01 s
    Rate 5Hz output, 15Hz, 35Hz, 50Hz can set(RS485without this function)
    Output signal RS232/RS485/RS422/TTL/PWM/CAN/MODBUS
    Average working time ≥45000 hours/time
    Impact resistant 20000g, 0.5ms, 3 times/axis
    Shock resistant 10grms, 10~1000Hz
    Insulation resistance ≥100MΩ
    Waterproof level IP67
    Cable Standard 1.5 m length, wear resistance, oil proof, wide temperature, shielding cable 4*0.2mm²
    Weight 150g (excluding boxes)
