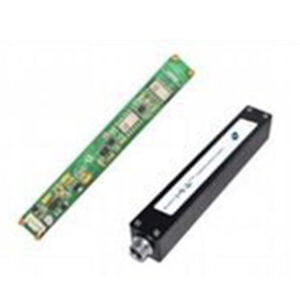

Digital Output Type Dual- Axis Tilt Sensor

Digital Output Type Dual-Axis Tilt Sensor

ER-TS-1230DI Features:
1. Two axis tilt monitoring;
2. Output frequency 5~100HZ (optional);
3. Full range accuracy 0.001°, resolution 0.0005°.

Digital Output Type Dual-Axis Tilt Sensor

Digital Output Type Dual- Axis Tilt Sensor

Get Price Now



    Share to:

    Introduction

    Digital Output Type Dual- Axis Tilt Sensor

    Introduction
    This is a full temperature compensation high-precision two-axis tilt sensor with a resolution of 0.0005°, an accuracy of 0.001°, and a temperature drift of 0.0005°/℃. The output interface has RS232, RS485, RS422, TTL, Modbus to choose from. This product is a customized inclinometer used to measure the inclination of rock and soil foundation pits. It integrates a 24-bit ARM high-end system with a resolution of 4 seconds and a response frequency of up to 100 Hz. The operator only needs to connect the inclinometer to the data transmission computer to make a high-precision inclinometer.

    Features
    Two axis tilt monitoring
    Full range accuracy 0.001°, resolution 0.0005°
    Output frequency 5~100HZ (optional)
    Wide voltage input DC 11~36V
    Wide temperature working -40~+85℃
    Measuring range 0~±5/±10/±15/±30°(optional)
    High vibration resistance>20000g
    Baud rate 2400~115200 (adjustable)
    IP65 protection
    Output RS232/RS485/TTL/MODBUS (optional)
    Small volume (160*20*20mm) (customizable)

    Applications
    High-voltage wire tower pole monitoring
    Satellite solar antenna positioning
    Precision machine tool horizontal control
    Precision laser platform equipment
    Medical equipment
    Railway locomotive
    Based on tilt monitoring
    Angle control of various construction machinery
    Monitoring of bridges, dams, and buildings

    Specifications

    Parameter Condition ER-TS-1230DI-5 ER-TS-1230DI-10 ER-TS-1230DII-15 ER-TS-1230DI-30 Unit
    Measuring range / ±5 ±10 ±15 ±30 °
    Measurement axis / X,Y axis X,Y axis X,Y axis X,Y axis /
    Zero temperature drift -40~85° ±0.0005 ±0.0005 ±0.0005 ±0.0005 °/℃
    Sensitivity temperature coefficient -40~85° ≤50 ≤50 ≤50 ≤50 ppm/℃
    Frequency response DC response 100 100 100 100 Hz
    Resolution / 0.0005 0.0005 0.0005 0.0005 °
    Accuracy -40~85℃ 0.001 0.002 0.003 0.005 °
    Long-term stability -40~85℃ <0.002 <0.003 <0.004 <0.006 °
    Power on start time / 0.2 0.2 0.2 0.2 s
    Response time / 0.01 0.01 0.01 0.01 s
    Rate 5Hz output, 15Hz, 35Hz, 50Hz can set (RS485without this function)
    Output signal RS232/RS485/RS422/TTL/PWM/CAN
    Average working time ≥45000 hours/time
    Impact resistant 20000g, 0.5ms, 3 times/axis
    Shock resistant 10grms, 10~1000Hz
    Insulation resistance ≥100MΩ
    Waterproof level IP67
    Cable Standard 1.5 m length, wear resistance, oil proof, wide temperature, shielding cable 5*0.3mm²
    Weight 20g (excluding boxes)
