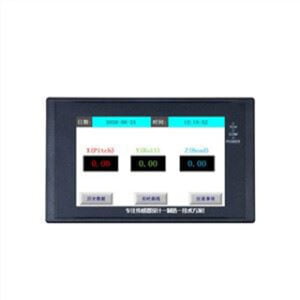

ER-DDTS-23 Features:
1. High resolution;
2. Sampling rate: 100HZ;
3. 4.3-inch LCD touch screen display.

Touch Angle Digital Display

Touch Angle Digital Display

Get Price Now



    Share to:

    Introduction

    Touch Angle Digital Display

    Introduction
    ER-DDTS-23 industrial sensor angle digital display can access all digital output sensor data in our products. The product is based on the Linux kernel high-performance embedded system, capable of fast, accurate, wireless or wired transmission and remote monitoring. The operation is simple, and the data can be stored in real time (optional). The product also uses a 4.3-inch high-brightness TFT LCD screen design and embedded configuration software (programmable by the users), with industrial image display and data processing functions.
    Through the peripheral angle sensor, engineers can directly use it by hand. The product can be matched with our inclination sensor and transmission mode (wired or wireless optional). Just like the following, wireless bluetooth<10m, zigbee<250m (optional); 1.5m wired standard (can be customized); RS232<25m, RS485<500m. The product is easy to operate and provides a zero adjustment function, which is convenient for practical applications and industrial fields.

    Features
    4.3-inch LCD touch screen display
    High resolution
    Sampling rate: 100HZ
    With data storage
    Wide temperature working -40~+85℃
    High seismic performance>20000 g
    Zero setting function
    A variety of combinations
    IP54 protection class
    Wired and wireless transmission (optional)
    Panel size (L226.5*M163mm)

    Applications
    Test the braking performance of motor vehicles
    Road platform measurement
    Instrument calibration and calibration
    Mining machinery, oil logging equipment
    Mechanical installation
    Tilt detection
    Tilt detection of geological equipment
    Tilt based monitoring
    Various construction machinery angle detection
    Inspection of bridges and dams

     Specifications

    Model ER-DDTS-23
    The LCD panel 4.3”TFT
    Backlight LED
    According to the color 65535 True Color
    Resolution 800*480
    Display brightness 200cd/㎡
    Touch screen Resistance-type
    The processor HMI, 300 MHZ
    Memory 64M
    Storage 128M
    The system software Linux embedded System
    External interface RS232, RS485, RS422, CAN Interface Modbus Protocol (extensible)
    Working humidity 5%~90%
    Shell material Industrial plastic
    Size Panel size L142*M86mm, cabinet size L129.7* M75.5mm
    Product certification CE, FCC
    Waterproof level IP65 (front panel)
    Electromagnetic compatibility Industrial level 3
    Installation Mounted or vertical, or embedded in the cabinet
    Weight 205g (excluding boxes)

    Electrical indicators

    Parameters Conditions Min Typical Value Max Unit
    Power supply DC power supply / 24 / V
    Options Build in rechargeable battery
    Rated power / / 5 / W
    Working temperature / 0 / 45
    Storage temperature / -10 / 60
