Tilt Display Instrument

Tilt Display Instrument

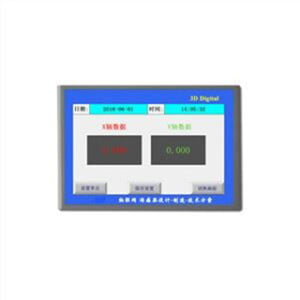

ER-DDTS-25 Features:
1. 7-inch LCD touch screen display;
2. High resolution;
3. Sampling rate: 100HZ.

Tilt Display Instrument

Tilt Display Instrument

Get Price Now



    Share to:

    Introduction

    Tilt Display Instrument

    Introduction
    ER-DDTS-25 industrial tilt sensor display, using Kunlunbang high-performance embedded MCGS touch screen. The product runs fast, recognizes accurately, and can be wirelessly or wiredly transmitted and remotely monitored. Simple operation and real-time data storage (optional). The product also uses a 7-inch high-brightness TFT LCD screen design, pre-installed MCGS embedded configuration software (running version), with industrial image display and data processing functions.
    Through the peripheral angle sensor, engineers can directly use it by hand. The product can be matched with our inclination sensor and transmission mode (wired or wireless optional). Just like the following, wireless bluetooth<10m, zigbee<250m (optional); 1.5m wired standard (can be customized); RS232<25m, RS485<500m. The product is easy to operate and provides a zero adjustment function, which is convenient for practical applications and industrial fields.

    Features
    7-inch LCD touch screen display
    High resolution
    Sampling rate: 100HZ
    With data storage
    Wide temperature working -40~+85℃
    High seismic performance>20000g
    Zero setting function
    A variety of combinations
    IP54 protection class
    Wired and wireless transmission (optional)
    Panel size (L226.5*M163mm)

    Applications
    Test the braking performance of motor vehicles
    Road platform measurement
    Instrument calibration and calibration
    Mining machinery, oil logging equipment
    Mechanical installation
    Tilt detection
    Tilt detection of geological equipment
    Tilt based monitoring
    Various construction machinery angle detection
    Inspection of bridges and dams

    Specifications

    Model ER-DDTS-25
    The LCD panel 7”TFT
    Backlight LED
    According to the color 65535 True Color
    Resolution 800*480
    Display brightness 200cd/㎡
    Touch screen Resistance-type
    The processor Cortex-A8, 600MHZ
    Memory 128M
    Storage 128M
    The system software MCGS embedded version
    External interface  Modbus (extensible)
    Working humidity 5%~90%
    Shell material Industrial plastic
    Size Panel size L226.5*M163mm, cabinet size L215* M152mm
    Product certification CE, FCC
    Waterproof level IP65 (front panel)
    Electromagnetic compatibility Industrial level 3
    The installation Mounted or vertical, or embedded in the cabinet
    Weight 557g (excluding boxes)

    Electrical indicators

    Parameters Conditions Min Typical Value Max Unit
    Power Supply DC power supply / 24 / V
    Options Build in rechargeable battery
    Rated power / / 5 / W
    Working temperature / 0 / 45
    Storage temperature / -10 / 60
