Dual Axis Tilt Angle Display Instrument

ER-DDTS-15 Features:
1. Double row digital display;
2. High resolution adjustable;
3. Output frequency 5~100HZ optional.

Share to:

Introduction

Dual Axis Tilt Angle Display Instrument

Introduction

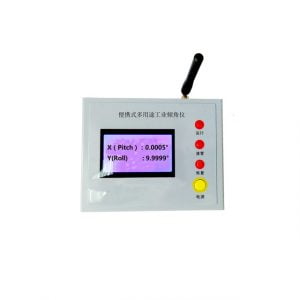

ER-DDTS-15 is a digital display inclinometer for angle control and measurement in various industrial sites by MCCO sensor. It can be directly used by engineers by means of external inclinometer or built-in inclinometer unit.
ER-DDTS-15 dual-axis digital inclinometer has fast response speed and stable data. The product is small in size and has a variety of working modes, that is, it can be matched with our inclination sensor and transmission mode (wired or wireless optional). Just like the following, wireless bluetooth<10m, zigbee<250m (optional); 1.5m wired standard (can be customized); RS232<25m, RS485<500m. The product is easy to operate and provides a zero adjustment function, which is convenient for practical applications and industrial fields.

Features
Double row digital display
High resolution adjustable
Output frequency 5~100HZ optional
Built-in rechargeable industrial battery
Wide temperature working -40~+85℃
High seismic performance＞20000g
Zero setting function
A variety of combinations
IP54 protection class
Wired and wireless transmission (optional)
Small volume (140*120*45mm) (Customizable)

Applications
Test the braking performance of motor vehicles
Road platform measurement
Instrument calibration and calibration
Mining machinery, oil logging equipment
Mechanical installation
Tilt detection
Tilt detection of geological equipment
Tilt based monitoring
Various construction machinery angle detection
Inspection of bridges and dams

Specifications

Parameter	Condition	ER-DDTS-15				Unit
LCD viewable area size	/	L7*W4				CM
The power supply	/	12V lithium battery				V
Zero temperature drift	-25~85°	±0.008	±0.008	±0.008	±0.008	°/℃
Sensitivity temperature coefficient	-25~85°	≤150	≤150	≤150	≤150	ppm/℃
Frequency response	DC response	100	100	100	100	Hz
The resolution of the	Bandwidth10Hz	0.01	0.01	0.01	0.01	°
After jack	Standard DB9 plug
Size	L140mmW120mmH45mm
Power on start time	/	0.2	0.2	0.2	0.2	s
The response time	/	0.01	0.01	0.01	0.01	s
Working current	<40mA
Working humidity	85%RH
Average working time	≥10 hours/time (battery powered)
Impact resistant	3500g
Insulation resistance	≥100MΩ
Power loss	<100mW
Protection grade	IP54
Cable	Standard 1.5 m length, wear resistance, oil proof, wide temperature, shielding cable 4*0.2mm2
Weight	280g (excluding boxes)

Electrical indicators

Parameters	Conditions	Min	Typical Value	Max	Unit
Power Supply	DC power supply	9	12	36	V
Power Supply	Options	Build in rechargeable battery			V
Working current	/	/	40	/	mA
Working temperature	/	-20	/	85	℃
Storage temperature	/	-40	/	100	℃
