ER-TS-3268CU Features:
1. Dual axis tilt monitoring;
2. Full range accuracy 0.01°, resolution 0.001°;
3. Output 4~20mA, 0~20mA, 0~24mA (optional).

Current Output Type 2 Axis Tilt Sensor

Current Output Type 2 Axis Tilt Sensor

Get Price Now



    Share to:

    Introduction

    Current Output Type 2 Axis Tilt Sensor

    Introduction

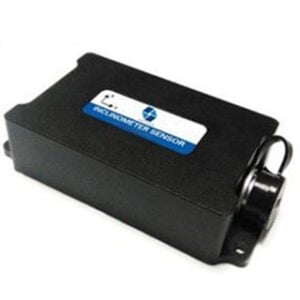

    ER-TS-3268CU is a standard industrial dual-axis current output tilt sensor. There are standard currents of 4-20mA, 0-20mA, 0-24mA to choose from, and it can transmit 2000 meters long distance.
    The product adopts MEMS sensor production technology, which can accurately compensate and correct temperature errors and linear errors. It has the characteristics of high accuracy, small size, high packaging technology, strong vibration resistance, built-in anti-radio frequency and anti-electromagnetic interference circuits, which is especially suitable for underground applications in harsh industrial environments such as excavation machinery.

    Features
    Dual axis tilt monitoring
    Full range accuracy 0.01°, resolution 0.001°
    Output 4~20mA, 0~20mA, 0~24mA (optional)
    Wide voltage input DC 9~36V (5V can be customized)
    Wide temperature working -40~+85℃
    Measuring range: 0~±90°(optional)
    High vibration resistance>20000g
    IP67 protection
    Can output RS232 at the same time, RS485 customizable
    Small volume (90*40*27mm) (customizable)

    Applications
    High voltage power line tower pole monitoring
    Satellite solar antenna positioning
    Aerial work truck
    Mining machinery, oil logging equipment
    Medical equipment
    Hydraulic lifting platform
    Inclination monitoring
    Angle control of various construction machinery
    Inspection of bridges and dams

    Specifications

    Parameter Condition ER-TS-3268CU-10 ER-TS-3268CU-30 ER-TS-3268CU-60 ER-TS-3268CU-90 Unit
    Measuring range / ±10 ±30 ±60 ±90 °
    Measurement axis / X, Y axis X, Y axis X, Y axis X, Y axis /
    Zero temperature drift -40~85° ±0.002 ±0.002 ±0.002 ±0.002 °/℃
    Sensitivity temperature coefficient -40~85° ≤50 ≤50 ≤50 ≤50 ppm/℃
    Zero drift  0° output 4~20mA output -12mA, 0~20mA output -10mA, 0~24mA output -12mA mA
    Frequency response DC response 100 100 100 100 Hz
    Resolution Bandwidth 5Hz 0.001 0.002 0.002 0.002 °
    Accuracy -40~85℃ 0.01 0.02 0.03 0.05 °
    Power on start time / 0.2 0.2 0.2 0.2 s
    Response time / 0.01 0.01 0.01 0.01 s
    Output signal 4~20mA, 0~20mA, 0~24mA optional
    Average working time ≥55000 hours/time
    Impact resistant 20000g, 0.5ms, 3 times/axis
    Shock resistant 10grms, 10~1000Hz
    Insulation resistance ≥100MΩ
    Waterproof level IP67
    Cable Standard 1.5 m length, wear resistance, oil proof, wide temperature, shielding cable 6*0.3mm²
    Weight 150g (excluding boxes)
