CANopen Type Dual Axis Tilt Sensor

CANopen Type Dual Axis Tilt Sensor

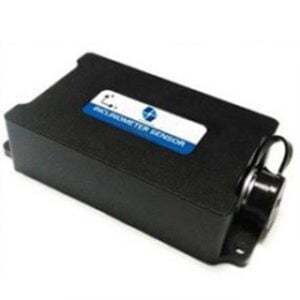

ER-TS-3265CA Features:
1. Dual axis tilt monitoring;
2. Full range accuracy 0.01°, resolution 0.001°;
3. Output frequency 5~100HZ (optional).

CANopen Type Dual Axis Tilt Sensor

CANopen Type Dual Axis Tilt Sensor

Get Price Now



    Share to:

    Introduction

    CANopen Type Dual Axis Tilt Sensor

    Introduction
    ER-TS-3265CA CANopen output dual axis tilt sensor is specially designed for industrial control field, using industrial standard isolator CAN transceiver, built-in high-precision 16bit A/D differential converter, through N-order filtering algorithm, so as to measure the sensor output relative to the horizontal plane tilt and pitching angle.
    The product has a built-in high-precision temperature sensor, which can correct the temperature drift of the sensor according to the change of the built-in temperature sensor to ensure the high repeatability of the product in a low temperature or high temperature environment. The output response frequency standard is up to 100Hz, which is suitable for various harsh industrial control environments.

    Features
    Dual axis tilt monitoring
    Full range accuracy 0.01°, resolution 0.001°
    Output frequency 5~100HZ (optional)
    Wide voltage input DC 9~36V
    Wide temperature working -40~+85℃
    Measuring range: 0~±90° (optional)
    High vibration resistance>20000g
    Baud rate 100K~500K bps
    IP67 Protection
    Output CANopen
    Small volume (90*40*27mm) (customizable)

    Applications

    High voltage wire tower monitoring
    Satellite solar antenna positioning
    High altitude work vehicle
    Mining machinery, oil logging equipment
    Medical equipment
    Hydraulic lifting platform
    Inclination monitoring
    Angle control of various construction machinery
    Bridges and DAMS, monitoring

    Specifications

    Parameter Condition ER-TS-3265CA-10 ER-TS-3265CA-30 ER-TS-3265CA-60 ER-TS-3265CA-90 Unit
    Measuring range / ±10 ±30 ±60 ±90 °
    Measurement axis / X,Y axis X, Y axis X, Y axis X, Y axis /
    Zero temperature drift -40~85° ±0.008 ±0.008 ±0.008 ±0.008 °/℃
    Sensitivity temperature coefficient -40~85° ≤100 ≤100 ≤100 ≤100 ppm/℃
    Frequency response DC response 100 100 100 100 Hz
    Resolution / 0.001 0.001 0.001 0.001 °
    Accuracy -40~85℃ 0.01 0.02 0.03 0.05 °
    Long-term stability -40~85℃ <0.013 <0.022 <0.031 <0.054 °
    Power on start time / 0.2 0.2 0.2 0.2 s
    Response time / 0.01 0.01 0.01 0.01 s
    Rate 5Hz output, 15Hz, 35Hz, 50Hz, 100Hz can set (RS485without this function)
    Output signal CAN
    Average working time ≥45000 hours/time
    Impact resistant 20000g, 0.5ms, 3 times/axis
    Shock resistant 10grms, 10~1000Hz
    Insulation resistance ≥100MΩ
    Waterproof level IP67
    Cable Standard 1.5 m length, wear resistance, oil proof, wide temperature, shielding cable 4*0.2mm²
    Weight 150g (excluding boxes)
