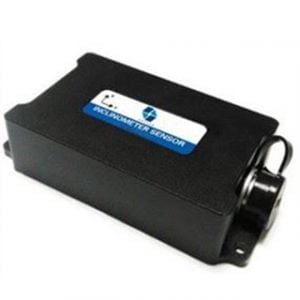

ER-TS-1225CA Features:
1. Two axis tilt monitoring;
2. Full range accuracy 0.001°, resolution 0.0005°;
3. Output frequency 5~100HZ (optional).

High Precision CAN Open Dual Axis Tilt Sensor

High Precision CAN Open Dual Axis Tilt Sensor

Get Price Now



    Share to:

    Introduction

    High Precision CAN Open Dual Axis Tilt Sensor

    Introduction
    It is a high-precision CANopen biaxial tilt sensor mainly aimed at the field of industrial field control, the product adopts the industrial standard isolator CAN transceiver with a resolution of 0.0005°, an accuracy of 0.001°, and a temperature drift of 0.0005°/°C.
    The product has a built-in high-precision temperature sensor that can correct the temperature drift of the sensor according to the change of the built-in temperature sensor to ensure the high repeatability of the product in a low temperature or high temperature environment. The output response frequency standard is up to 100Hz, which is suitable for various harsh industrial control environments.

    Features
    Two axis tilt monitoring
    Full range accuracy 0.001°, resolution 0.0005°
    Output frequency 5~100HZ (optional)
    Wide-voltage input DC 11~36V
    Wide temperature working -40~+85℃
    Range 0~±5/±10/±15/±30° (optional)
    High vibration resistance>20000g
    Baud rate: 100K~500K bps
    IP67 Protection
    Output CANopen
    Volume (107*55*27mm) (customizable)

    Applications
    High voltage wire tower monitoring
    Satellite solar antenna positioning
    High altitude work vehicle
    Mining machinery, oil logging equipment
    Medical equipment
    Hydraulic lifting platform
    Inclination monitoring
    Angle control of various construction machinery
    Bridges and DAMS, monitoring

    Specifications

    Parameter Condition ER-TS-1225CA-5 ER-TS-1225CA-10 ER-TS-1225CA-15 ER-TS-1225CA-30 Unit
    Measuring range / ±5 ±10 ±15 ±30 °
    Measurement axis / X ,Y axis X ,Y axis X ,Y axis X ,Y axis /
    Zero temperature drift -40~85° ±0.0005 ±0.0005 ±0.0005 ±0.0005 °/℃
    Sensitivity temperature coefficient -40~85° ≤50 ≤50 ≤50 ≤50 ppm/℃
    Frequency response DC response 100 100 100 100 Hz
    Resolution Bandwidth5Hz 0.0005 0.0005 0.0005 0.0005 °
    Accuracy -40~85℃ 0.001 0.002 0.003 0.005 °
    Long-term stability -40~85℃ <0.002 <0.003 <0.005 <0.006 °
    Power on start time / 0.2 0.2 0.2 0.2 s
    Response time / 0.01 0.01 0.01 0.01 s
    Baud rate 100K~500K bps can set, others need customized
    Output signal CAN
    Average working time ≥45000 hours/time
    Impact resistant 20000g, 0.5ms, 3 times/axis
    Shock resistant 10grms, 10~1000Hz
    Insulation resistance ≥100MΩ
    Waterproof level IP67
    Cable Standard 1.5 m length, wear resistance, oil proof, wide temperature, shielding cable 5*0.2mm²
    Weight 250g (excluding boxes)
