Dual-axis Temperature Control Turntable

Dual-axis Temperature Control Turntable

ER-TCT-02 Features:
1. Provide high and low temperature environment testing;
2. Table or load mounting tooling can be customized;

Dual-axis Temperature Control Turntable

Dual-axis Temperature Control Turntable

Get Price Now



    Share to:

    Introduction

    Dual-axis Temperature Control Turntable

    Introduction

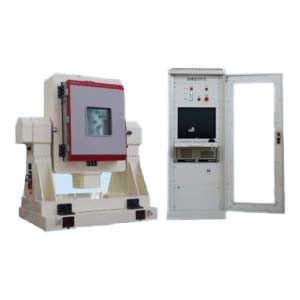

    ER-TCT-02 Dual-axis temperature control turntable adopts UOT mesa structure, which can rotate in both directions of azimuth and pitch. It can provide high and low temperature environment testing and calibration for inertial devices (tested parts). The turntable is directly driven by a DC torque motor and powered by a PWM driver. The table is installed inside the temperature box, the maximum installation diameter can reach 1000mm; The temperature box can be customized according to user requirements.

    The azimuth axis and pitch axis of the two-axis temperature control turntable can rotate continuously, which can provide the measured parts with azimuth axis position, speed, swing, elevation axis position&speed and other motion patterns; Waterproof and moisture-proof aviation connectors are provided on the turntable for signal transmission of the tested part. The electric cabinet provides standard RS232/422 serial interface, Ethernet interface and other interfaces, and can be extended optical fiber interface and other interfaces. For the convenience of users, the upper computer software supporting the turntable can integrate the temperature control of the temperature box.

    Main technical parameters

    Technical index Inner ring axis Outer ring axis Inner ring axis Outer ring axis
    dimensions in the oven (W x D x H) 600mmx600mmx600mm 750mmx750mmx650mm
    Mesa diameter φ500mm φ600mm
    Maximum load weight 60kg 100kg
    Maximum load size φ400mmx450mm φ500mmx500mm
    Conductive slip ring The standard configuration is 60 ring, and it can be customized. The standard configuration is 60 ring, and it can be customized.
    Angle range Both axes are continuous Both axes are continuous
    Motion pattern Position, speed, shaking Position, speed Position, speed, shaking Position, speed
    Position accuracy
    Positioning accuracy ±2" ±3" ±2" ±3"
    Control resolution 0.0001° 0.0001° 0.0001° 0.0001°
    Repeatability 1" 1" 1" 1"
    Rate accuracy
    Rate range 1200° /s 400°/s 1200°/s 400°/s
    Speed accuracy and stability 0~1°/s 2x10-3(1°average) 2x10-3(1°average)
    1~10°/s 2x10-4(10°average) 2x10-4(10°average)
    10~360°/s 2x10-5(360°average) 2x10-5(360°average)
    Rate resolution 0.001°/s 0.001°/s
    Dynamic performance
    Maximum angular acceleration 1500°/s2 400°/s2 800°/s2 300°/s2
    Maximum swing frequency 12Hz / 10Hz /
    Mechanical accuracy
    Rotation accuracy ±1.5” ±2” ±1.5” ±2”
    Mesa material Super duralumin / Stainless steel
    Mesa leakage 2Gs
    Table runout 0.02mm
    Perpendicularity ±3”
    Electrical interface
    External electrical interface RS232/RS422
    User channel interface Navigation interpolation (custom)
    Temperature control box
    Conventional index Temperature uniformity: ≤2℃

    Temperature deviation: ≤±2℃

    Temperature fluctuation: ≤±0.5℃

    Rising and cooling rate: ≥3℃/s (average throughout)

    Other options
    Table or load mounting tooling can be customized
    Increase position accuracy, speed and acceleration to increase cost; Reduced position accuracy, speed and acceleration to reduce cost.
    You can customize conductive slip rings, expandable network ports, and optical fiber ports.
    Temperature indicators can be customized, and can also provide turntable and temperature control software integration.
