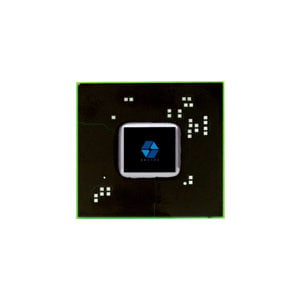

Integrated Temperature Sensor CPU
Introduction
ER-CPU-21K processor is mainly for network applications, tablet applications and industrial control applications. Use 40nm technology, integrated on-chip two GS264 processor cores, 1GHz dominant frequency, 64-bit DDR3 controller, and various system I/O interfaces.
Main Features
▲ Integrated two 64-bit dual-emission superscalar GS264 processor cores in the chip, and the main frequency is 1GHz
▲ Integrated and shared 1MB Level 2 Cache in the chip
▲ Integrated GPU in the chip
▲ Integrated display controller, supporting dual-channel DVO display in the chip
▲ Integrated a 64-bit 533MHz DDR3 controller in the chip
▲Integrated two x4 PCIE2.0 interfaces in the chip. It can be divided into six independent x1 ports
▲Integrated one SATA2.0 interface in the chip
▲Integrated four USB2.0 interfaces in the chip
▲Integrated two RGMII gigabit network interfaces in the chip
▲Integrated HDA/I2S interfaces in the chip
▲Integrated RTC/HPET module in the chip
▲Integrated 12 UART controllers in the chip
▲Integrated one NAND controller in the chip
▲Integrated two CAN controllers in the chip
▲Integrated one SDIO controller in the chip
▲Integrated two I2C controllers in the chip
▲Integrated one LIO controller in the chip
▲Integrated one VPU decoder in the chip
▲Integrated a CAMERA interface controller in the chip
▲Integrated a temperature sensor in the chip
▲Integrated dynamic power control module in the chip
▲Adopt FC-BGA encapsulation
