Economical CPU
Introduction

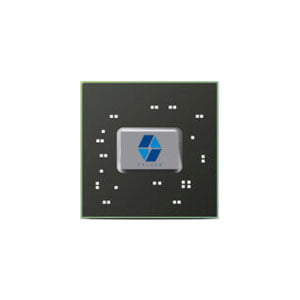

ER-CPU-71A is the bridge piece for the Ericco 3 series processor bridge for server and personal computer. The bridge chip integrates 1-channel HT3.0 for connecting Ericco 3 series processor, and other main peripheral interfaces include 3-channel x8 PCIE2.0, 2-channel x4 PCIE2.0, 3-channel SATA2.0, 6-channel USB2.0, 2-channel DVO and other small interfaces, which can meet the requirements of server and personal computer applications. And provides the corresponding interface for its extended application.
Parameters
| Processor Interface | HT3.0 x16 |
| PCIE | PCIE2.0 Controller, 32lane |
| GPU | Support 2D, 3D |
| SATA | 3 SATA2.0 ports |
| USB | 6 USB2.0 |
| Network | 2 RGMII ports |
| Graphics card memory | 16-bit DDR3 controller |
| Display | Supports dual-channel DVO display |
| Audio | HDA |
| Other Interface | SPI、UART*4、I2C*6、GPIO |
| Power Consumption | 5-8W |
