ER-DSPB-6U1
1. Work Temperature: -40°C~70°C;
2. Storage Temperature: -55°C~125°C;
3. Power Consumption: ≤60w.

High Performance Signal Processing Board

High Performance Signal Processing Board

Get Price Now



    Share to:

    Introduction

    High Performance Signal Processing Board

    Product Profile

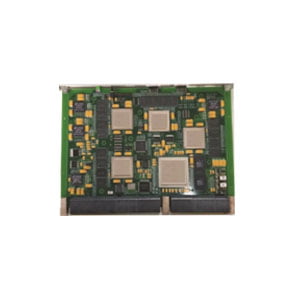

    The ER-DSPB-6U1 board is a high-performance general-purpose signal processing board consisting of four “ER-DSPC-10”. It has two products VPX/CPCI, which provide hardware support for high-speed real-time radar tasks such as instrumentation and medical electronics.

    Technical Indicators

    Processing Capacity:

    4 pieces high performance DSP computing power: 72GFLOPS

    Storage Capacity:

    Each DSP has external DDR2 total memory capacity: 4GBytes

    FPGA (Altera4SGX230K) Plug-in SRAM:144Mbit

    Data Interface:

    72 channels of custom TTL for data input and output

    Transmission Bandwidth:

    Each DSP is connected to the FPGA via a link with a transmission rate of 4.8Gbps per channel

    Supports 8 high-speed serial channels externally, each with a transmission rate of 2.5Gbps

    Physical Characteristics:

    Size: Standard 6U board

    Work Temperature: -40°C~70°C

    Storage Temperature: -55°C~125°C

    Power Consumption: ≤60w

    Heat-dissipating Method: Cooling Conduction and Air Cooling
