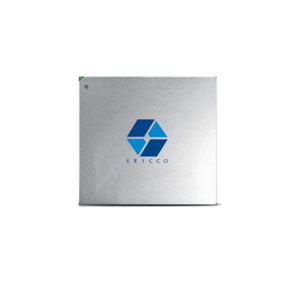

Strong Driving Force CPU

ER-CPU-35A/35B
1. Based on New Arch™;
2. High bandwidth memory interface: Support DDR4-3200, the actual bandwidth is more than 25GB/s;
3. Integrated Eco-compatibility: Real-time translation for applications with different architectures.

Share to:

Introduction

Strong Driving Force CPU

Introduction

ER-CPU-35A/35B is a general processor for personal computers, servers and other information fields. The product uses unique Arch™ processor core to further increase frequency, reduce power consumption, and optimize performance. While maintaining pin compatibility with the ER-CPU-34A processor, the frequency is increased to 2.5GHz, power consumption is reduced by more than 30%, and performance is improved more than 50%. The ER-CPU-35B supports multiple interconnect based on the ER-CPU-35A.

Main Features

Based on New Arch™

The single-core SPEC CPU 2006 Base has a measured performance of more than 26 points, making it the most efficient domestic processor core

High bandwidth memory interface: Support DDR4-3200, the actual bandwidth is more than 25GB/s

Integrated Eco-compatibility: Real-time translation for applications with different architectures

Refined power consumption management: Built-in power consumption control core which can adjust dynamically frequency and voltage

Support for independent GPU: Equipped with the new generation of independent display bridge 7A2000, using self-designed 3D GPU

Parameters

Master frequency	2.3GHz-2.5GHz
Peak operation speed	160GFlops
Core number	4
Processor core	64-bit superscalar processor core EA464; Support for Arch™ instruction system; Support 128/256-bit vector instruction; Four launch out of order execution; 4 fixed point units, 2 vector units and 2 access storage units
High-speed Cache	Each processor core contains a 64KB private level-1 instruction cache and 64KB private level-1 data cache; Each processor core contains 256KB private level-2 cache; All processor cores share 16MB level-3 cache
Memory controller	Two 72-bit DDR4-3200 controllers; Support ECC verification
High speed I/O	2 HyperTransport 3.0 controllers; Support multi-processor data consistency interconnection (CC-NUMA)
Other I/ O	1 SPI, 1 UART, 2 I2C, 16 GPIO interfaces
Power consumption management	Support the main module clock dynamic shutdown; Support the main clock domain dynamic frequency conversion; Supports dynamic voltage regulation in the main voltage domain.
