Flight safety secrets: The core role of high-precision IMUs in aviation

High-precision IMU plays an irreplaceable role in the aviation field. It provides key data support for the flight control system (FCS) by providing the acceleration and angular velocity of the carrier, and combining algorithms to solve attitude, speed and position information.

In the flight control system, the data provided by IMU is the basis for the autopilot to achieve precise control. The autopilot continuously adjusts the flight parameters of the aircraft based on the data of IMU to ensure the stability and safety of the flight process.

Excellent precision performance

Gyroscope bias instability is 0.03deg/hr, and angle random walk is <0.01 °/√h; accelerometer bias repeatability is 100μg, and class II non-linearity coefficient is <100μg/g². 400Hz high-frequency data output, power consumption as low as 2W.

Such high-precision measurement capabilities can accurately measure the attitude changes of aircraft in aerial photogrammetry. Using the information provided by IMU, the captured images can be accurately geometrically corrected and positioned.

This makes the drawn maps more accurate and can meet the needs of high-precision geographic information in urban planning, land surveying, geological exploration and other fields.

In the aircraft's navigation system, the high-precision IMU cooperates with other navigation equipment to form a navigation system. When the GPS signal is interfered with or fails, this IMU can switch to the main navigation data source in a short time to ensure that the aircraft's navigation system continues to provide accurate position and attitude information.

Compact and lightweight design

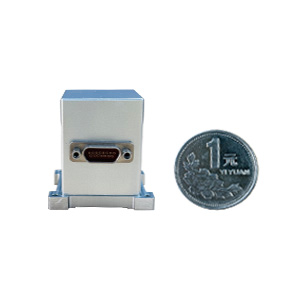

Adopting modular design, the size is only 40*40*42 (mini version with shell)/27*26*34 (mini version without shell and baseboard), and the weight is 80g (mini version with shell)/ 40g (mini version without shell and baseboard).

This compact and lightweight design is crucial for the aviation field, which is extremely sensitive to weight and space. It can effectively reduce the load of equipment such as drones and aircraft, and improve flight performance and efficiency.

Powerful integration and compatibility

It can be customized by OEM, has good integration and compatibility, and can be easily integrated into various systems.

Simple operation can connect to the system and obtain IMU data. At the same time, by removing the baseboard shell, the size and weight of the IMU can be greatly reduced.
