ER-MIMU-11
1. Mini diameter: 120mm x Φ30mm;
2. Light weight: ≤150g;
3. Temperature compensation: -40℃~ + 80℃.

Miniaturized MEMS IMU

Miniaturized Mems Imu

Get Price Now



    Share to:

    Introduction

    Miniaturized MEMS IMU

    Introduction
    The product is mainly composed of three-axis MEMS accelerometer and gyroscope. The working principle is as follows: the gyroscope and accelerometer data are collected by ARM microcontroller, three high-precision gyroscopes are collected by 1-channel digital interface SPI, and three accelerometers are collected by another 1-channel digital interface SPI. All sensors are calibrated and compensated in software after acquisition.

    Features
    Mini diameter:120mm x Φ30mm
    Light weight: ≤150g
    Temperature compensation: -40℃~ + 80℃
    Products with wide voltage design: 6v~12v
    Gyro bias instability: <0.1deg/hr
    Gyro bias stability (10s 1σ): <1deg/hr
    Gyro angular random walk: <0.05°/ √h
    Accelerometer bias repeatability: 100ug
    Accelerometer bias stability (10s 1σ): <50ug
    Accelerometer class II non-linearity coefficient: <100ug/g2
    6V power supply, low power consumption 2W
    RS422 bus communication, baud rate from 230400~921600 can be set

    Application
    Azimuth, attitude, position measuring and keeping in GNSS-assisted INS
    Heading, pitch, roll measuring in AHRS for UAV
    Motion survey and keeping in MRU
    Attitude & azimuth keeping, positioning in IMU
    Stabilizing & Pointing in satellite antenna, target tracking system
    Robotic Control & Orientation in autonomous machines
    Unmanned vehicles

    Specifications

    Item Parameter A B C Unit
    Gyro performance
    Range 400 400 400 deg/s
    Scale Factor at 25°C 16000 20000 20000 LSB/deg/s
    Scale Factor Repeatability (1σ) <50 <100 <50 ppm
    Scale Factor VS Temperature (1σ) 300 500 500 ppm
    Scale Factor Non-Linearity (1σ) <300 <300 <300 ppm
    Bias Instability(1σ 25℃) <0.3 <0.3 <0.1 deg/hr
    Bias stability (10s 1σ) <3 <2 <1 deg/hr
    Angular Random Walk <0.125 <0.125 <0.05 °/ √h
    Bias Repeatability(1σ 25℃) <3 <2 <1 deg/hr
    Accelerometer performance
    Range 30 g
    Bias Stability (10s 1σ) <50 ug
    Bias Repeatability 100 ug
    Bias Temp Coefficient <20 ug/℃
    Bias Temp Hysteresis <1.5 mg
    Scale Factor Non-linearity <500 ppm
    Scale Factor Month Repeatability <30 ppm
    Scale Factor Temp Coefficient 10 ppm/℃
    Class II Non-linearity Coefficient <100 ug/g2
    Scale Factor 250000 Lsb/g
    Environment and power
    Operate temperature -40~+80
    Storage temperature -55~+105
    Power supply 6~12V DC V
    Power (Power supply 6) 2 W
    Communication interface RS-422
    Physical characteristics
    Size 120 x Φ30 mm
    Weight ≤150 g

    Dimension

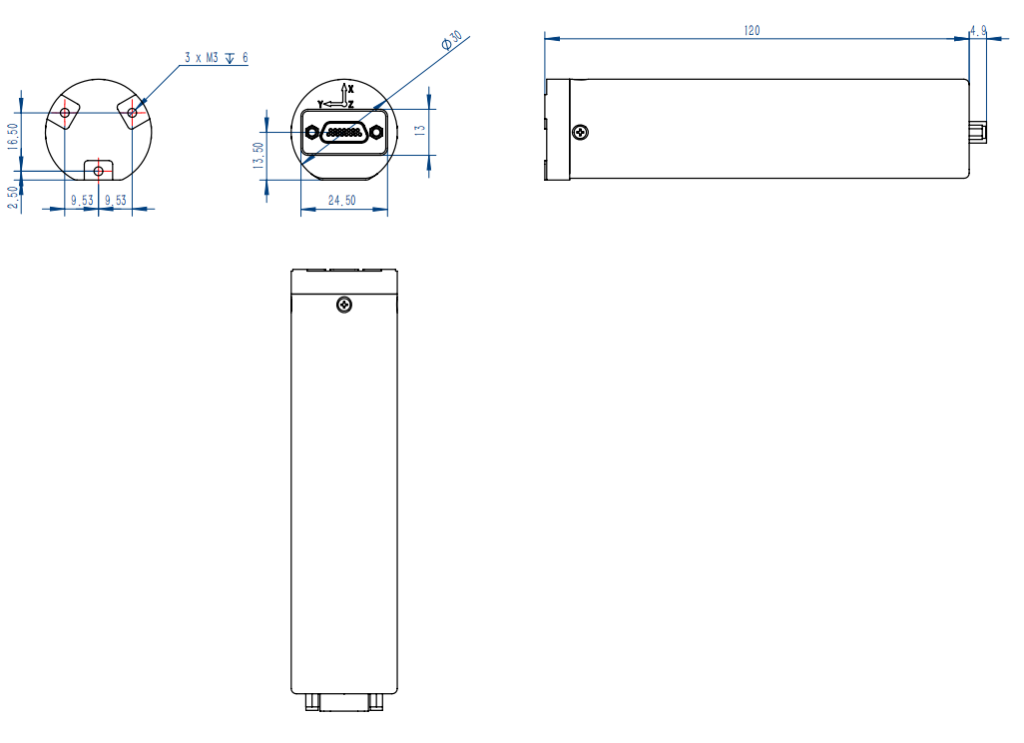

    Figure 1 Product Outline(unit:mm)

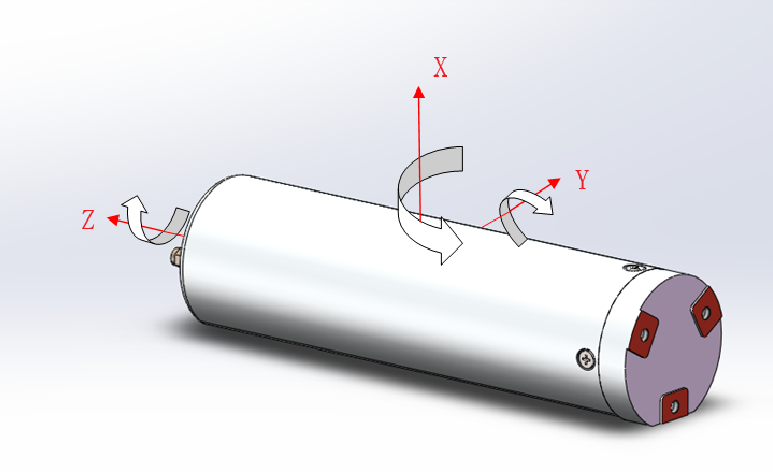

    Figure 2 Product Polarity Diagram
