MEMS IMU

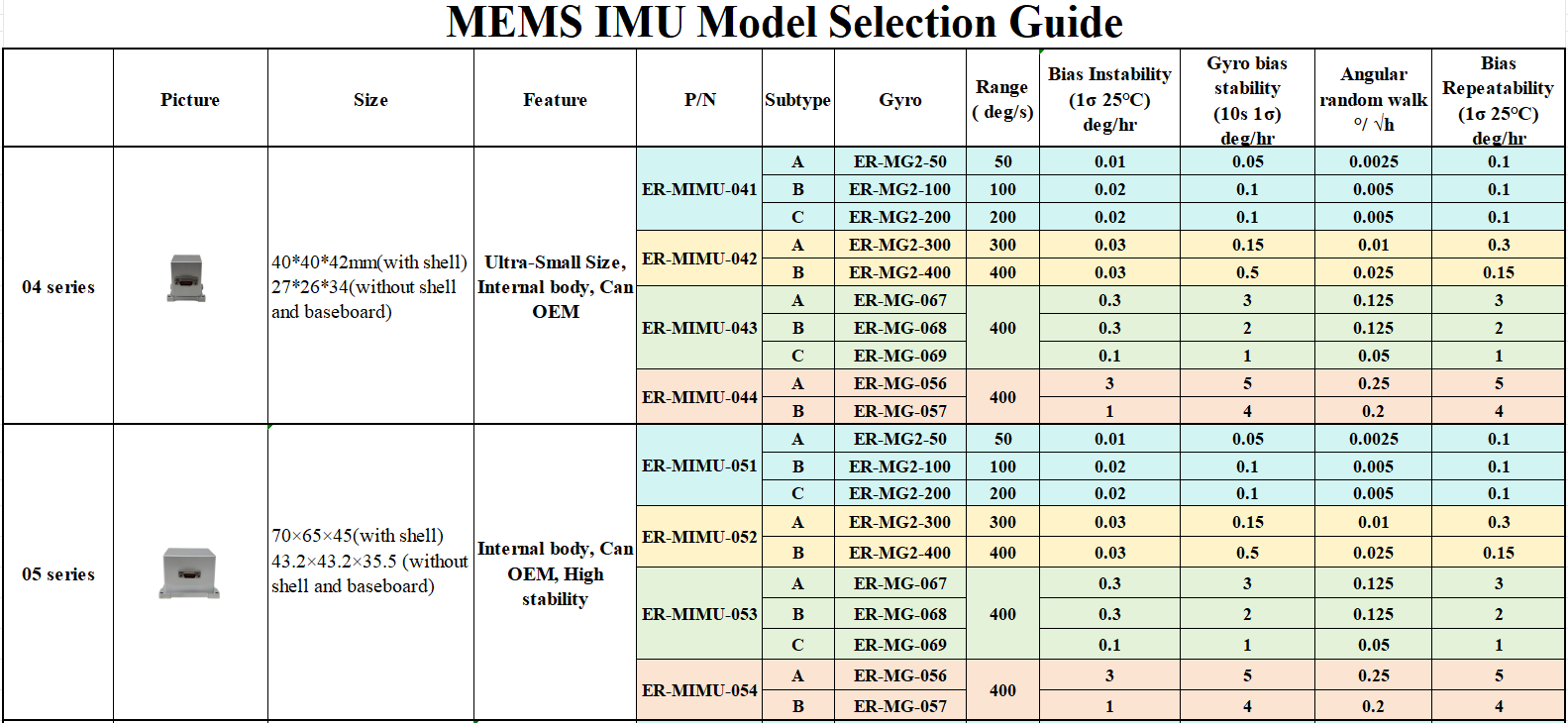

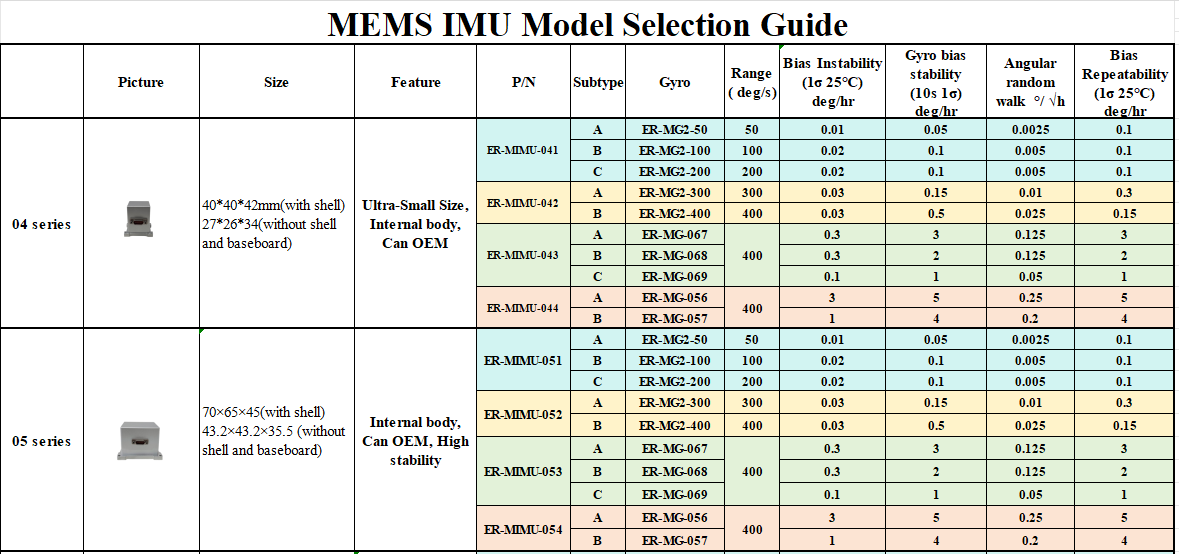

Mems Imu Model Selection Guide 01

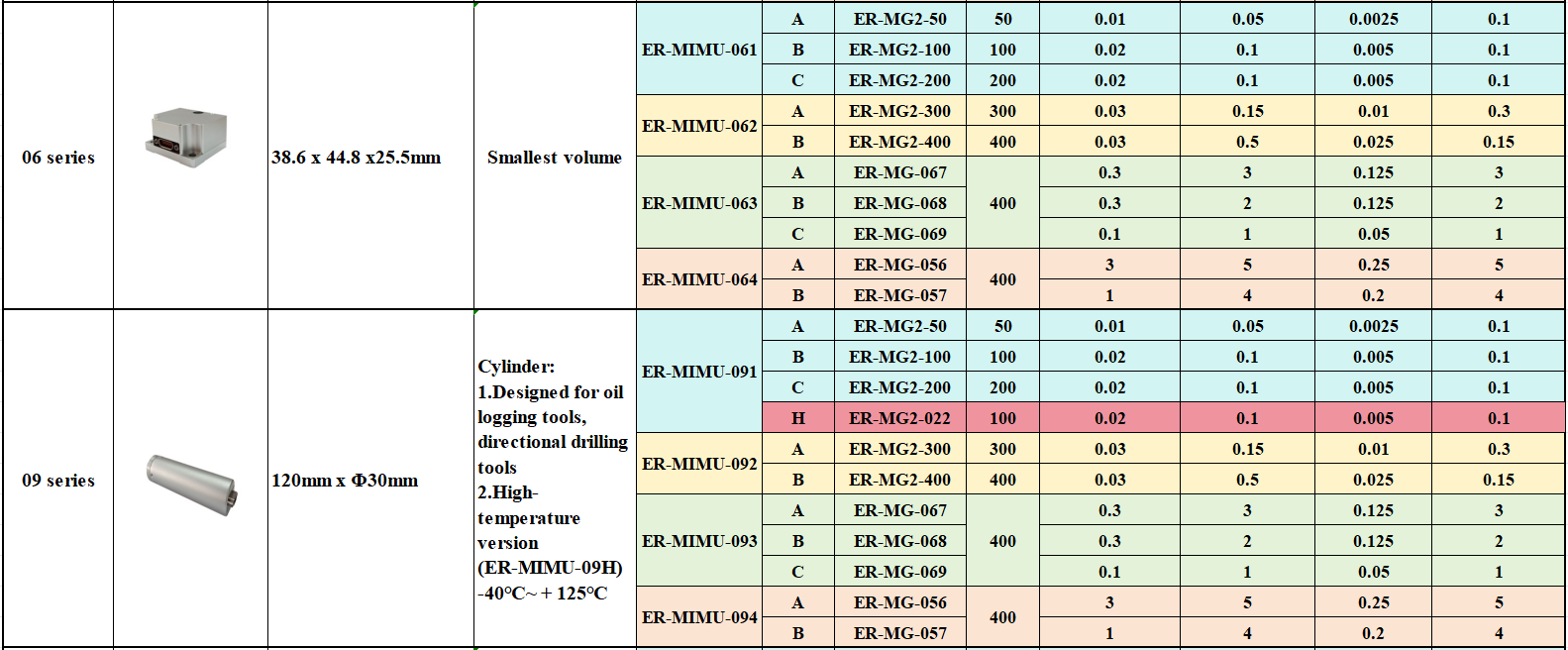

Mems Imu Selection Guide 02

Ericco provides high reliability and high accuracy MEMS Inertial Measurement Unit to the customers worldwide, the quality and after service are proven to be well guaranteed. Ericco not only provides the standard MEMS IMU, but also customizes MEMS IMU according to the customers' special requirements. Just come and get more details with us.

Advantage of Ericco MEMS IMU：
1.Small size
2.Light weight
3.High accuracy
4.Good reliability
5.Low power consumption

FAQ About MEMS IMU:
1.Navigation grade MEMS IMU VS Tactical grade MEME IMU
2.Revolutionizing drone navigation: How to redefine high performance and low cost
3.Flight safety secrets: The core role of high-precision IMUs in aviation
4.Industrial Versatile Tool: High Cost-Performance IMU Meets Diverse Needs
5.Do you know the core components that give precise control to automated equipment

Ultra-small MEMS North Seeker for Mining Applications

Ultra-small size OEM North-Seeking MEMS IMU

ER-MIMU-21
1. Size: 40*40*42(with shell)/27*26*34(without shell and baseboard);
2. OEM, modular design, strong applicability;
3. Can find north independently.

Ultra Size Oem Navigation Mems Imu

Ultra-small size OEM Navigation MEMS IMU

ER-MIMU-22
1. Size: 40*40*42(with shell)/27*26*34(without shell and baseboard);
2. OEM, modular design, strong applicability;
3. Gyro bias instability(1σ 25℃): 0.03deg/hr.

Ultra Size Oem Stable Control Mems Imu

Ultra-Small size OEM Stable Control MEMS IMU

ER-MIMU-23
1. Size: 40*40*42(with shell)/27*26*34(without shell and baseboard);
2. OEM, modular design, strong applicability;
3. Gyro bias instability(1σ 25℃): <0.1deg/hr.

Ultra Small Size Oem Attitude Control Mems Imu

Ultra-small size OEM Attitude-control MEMS IMU

ER-MIMU-24
1. Size: 40*40*42(with shell)/27*26*34(without shell and baseboard);
2. OEM, modular design, strong applicability;
3. -40~80°C temperature compensation.

North Seeking Mems Imu.jpg

North-Seeking MEMS IMU

ER-MIMU-01
1. Size:70*65*45(with shell)/43.2*43.2*35.5 (without shell and baseboard);
2. OEM, modular design, strong applicability;
3. Can find north independently.

High Performance Navigation Mems Imu.jpg

High Performance Navigation MEMS IMU

ER-MIMU-02
1. Size: 70*65*45(with shell)/43.2*43.2*35.5 (without shell and baseboard);
2. OEM, modular design, strong applicability;
3. Gyro bias instability(1σ 25℃): 0.03deg/hr.

High Precision Stable Control Mems Imu.jpg

High Precision Stable Control MEMS IMU

ER-MIMU-03
1. Size:70*65*45(with shell)/43.2*43.2*35.5 (without shell and baseboard);
2. OEM modular design, strong applicability;
3. Gyro bias instability(1σ 25℃): <0.1deg/hr.

North Seeking Mems Imu.jpg

Low-Cost Attitude-Control MEMS IMU

ER-MIMU-04
1. Size:70*65*45(with shell)/43.2*43.2*35.5 (without shell and baseboard);
2. -40~80°C temperature compensation;
3. OEM modular design, strong applicability.

High Precision Navigation Mems Imu

High Accuracy North-Seeking MEMS IMU

ER-MIMU-05
1. Smallest volume: 38.6mm x 44.8mm x25.5mm;
2. Range can be selected;
3. Light weight: ≤70g.

High Accuracy North Seeking Mems Imu

High Precision Navigation MEMS IMU

ER-MIMU-06
1. Smallest volume: 38.6mm x 44.8mm x25.5mm;
2. Light weight: ≤70g;
3. Temperature compensation: -40℃~ + 80℃.

Stable Control Mems Imu

Stable-Control MEMS IMU

ER-MIMU-07
1. Smallest volume: 38.6mm x 44.8mm x25.5mm;
2. Light weight: ≤70g;
3. Temperature compensation: -40℃~ + 80℃.

Low Cost Mems Inertial Measurement Unit 2

Low Cost MEMS Inertial Measurement Unit

ER-MIMU-08
1. Smallest volume: 38.6mm x 44.8mm x25.5mm;
2. Light weight: ≤70g;
3. Temperature compensation: -40℃~ + 80℃.

North Seeking Mems Imu For Gyro Tools 3 (1)

North-Seeking MEMS IMU for Gyro Tools

ER-MIMU-09
1. Mini Diameter: 120mm x Φ30mm;
2. Light weight: ≤150g;
3. Temperature compensation: -40℃~ + 80℃ / -40℃~ + 125℃.

Low Power Inertial Measurement Unit

Low Power Inertial Measurement Unit

ER-MIMU-10
1. Mini Diameter: 120mm x Φ30mm;
2. Light weight: ≤150g;
3. Temperature compensation: -40℃~ + 80℃.

Miniaturized Mems Imu

Miniaturized MEMS IMU

ER-MIMU-11
1. Mini diameter: 120mm x Φ30mm;
2. Light weight: ≤150g;
3. Temperature compensation: -40℃~ + 80℃.

Small Size Mems Imu

Small Size MEMS IMU

ER-MIMU-12
1. Mini diameter: 120mm x Φ30mm;
2. Light weight: ≤150g;
3. Temperature compensation: -40℃~ + 80℃.

High Performance North Seeking Mems Imu 1

North-seeking MEMS IMU

ER-MIMU-14
1. Small size: 47×44×14mm;
2. Light weight: 40g;
3. Gyro bias instability can be up to 0.01 º/h (Allan variance).

High Precision Navigation Mems Inertial Measurement Unit

High-Precision Navigation MEMS IMU

ER-MIMU-15
1. Small size: 47×44×14mm;
2. Light weight: 40g;
3. Gyro bias instability: 0.03º/h (Allan variance).

Cost Effective Attitude Control Mems Imu 1

Stable Control MEMS IMU

ER-MIMU-16
1. Small size: 47×44×14mm;
2. Light weight: 40g;
3. Gyro bias instability: 0.1 º/h (Allan variance).

Low Cost Inertial Measurement Unit (2)

Low-cost Attitude Control MEMS IMU

ER-MIMU-17
1. Small size: 47×44×14mm;
2. Light weight: 40g;
3. Gyro bias instability: 1º/h (Allan variance).

High Performance Mems Imu

High Performance MEMS IMU

ER-MIMU-M02
1. Small size: 47×44×14mm;
2. High reliability and strong environmental adaptability.
3. Light weight: 50g.

Low Cost Mems Imu

High Performance MEMS IMU

ER-MIMU-M01A(≤2°/h)
1. Miniaturized IMU;
2. Gyro bias instability: ≤2°/h(Allan variance);
3. High cost performance.

Low Power Consumption Mems Imu

Low Power Consumption MEMS IMU

ER-MIMU-M01B(≤3°/h)
1. Miniaturized IMU;
2. Low power consumption;
3. Gyro bias instability: ≤3°/h(Allan variance).

Low Cost Mems Imu

Low Cost MEMS IMU

ER-MIMU-M01C(≤4°/h)
1. Miniaturized MEMS IMU;
2. Gyro bias instability: ≤4°/h(Allan variance);
3. Low price.
