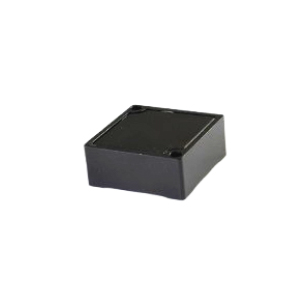

Low Power Consumption MEMS IMU

ER-MIMU-M01B(≤3°/h)
1. Miniaturized IMU;
2. Low power consumption;
3. High cost performance;
4. Total temperature compensation.

Share to:

Introduction

ER-MIMU-M01B Low Power Consumption MEMS IMU

Introduction
The ER-MIMU-M01B Low Power Consumption MEMS IMU is a general-purpose, miniaturized component that contains three-axis gyroscope and three-axis accelerometer information. Temperature compensation is performed through the bias stability and scale of each axis to improve its measurement accuracy.

Features
Miniaturized IMU
Low power consumption
High cost performance
Total temperature compensation
Gyro bias instability：≤3°/h
Gyro bias stability (1σ)：≤12°/h
Accelerometer bias instability : ≤0.04mg
Accelerometer bias repeatability (1σ):≤0.3mg

Application
Inertial navigation: inertial guidance, integrated navigation, platform stability
Short-term navigation: flight control, ballistic correction, telemetry and remote control
Attitude control: UAV, antenna orientation

Specifications

Gyroscope
Measuring range		±450°/s
Full temperature bias		≤150°/h
Angular random walk		≤0.25°/ √h
Bias instability		≤3°/h
Bias stability (1σ)		≤12°/h
Bias repeatability (1σ)		≤12°/h
Scale factor non-linearity		≤50ppm
Bandwidth (configurable)		150Hz
Accelerometer
Measuring range		±10g
Full temperature bias		≤5mg
Rate random walk		≤0.03m/s/√h
Bias instability		≤0.04mg
Bias stability (1σ)		≤0.3mg
Bias repeatability (1σ)		≤0.3mg
Scale factor non-linearity (Within 1g)		≤200ppm
Bandwidth (configurable)		150Hz
System
Supply voltage		5V±0.3V
Operating temperature range		－45℃~＋85℃
Shock resistance		≥2000g
Vibration		≥20grms

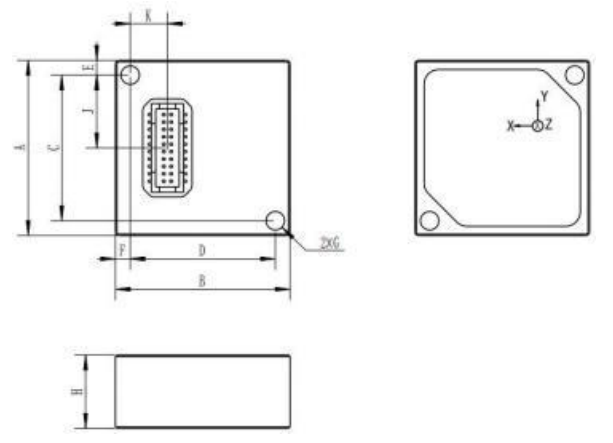

Size		23.7mm×23.7mm×9.9mm
Weight		≤25g
Interface type（--）		RS422
Output mode（--）		High temperature wire
Output interface wiring definition
Red conductor	VCC（＋5V）	Power supply positive
Black conductor	GND	Power supply ground
White conductor	Rx＋	RS422 receive ＋
Brown conductor	Rx－	RS422 receive －
Green conductor	Tx－	RS422 send －
Yellow conductor	Tx＋	RS422 send ＋
