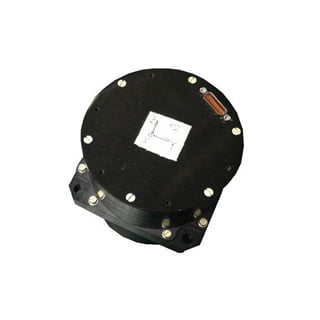

Low Cost & High Precision FOG IMU (Replace LN200)

ER-FIMU-60:
1. Tactical FOG inertial measurement unit, dimension, communication interface, power can be customized;
2. Gyro-bias stability/repeatability: 0.3°/h;
3. All-solid triaxial fiber optic gyroscope and triaxial quartz flexibility accelerometer.

Share to:

Introduction

ER-FIMU-60 Low Cost & High Precision FOG IMU (Replace LN200)

Introduction:
ER-FIMU-60 Low Cost & High Precision FOG IMU (replace LN200) developed for tactical military systems in order to replace LN200 of Northrop Grumman (Former Litton). It consists of an all-solid triaxial fiber optic gyroscope and triaxial quartz flexibility accelerometer, body structure, data interface board and other components. It has the following advantages: fast start-up and fast response; full attitude measurement; low power consumption and miniaturization; fully sealed, non-active part and gas protection compartment, and reliable frame structure, thus featuring high reliability and long life. The sensor has low noise and small offset, and can be directly integrated with navigation computer, satellite receiver and related software to form GNSS/INS integrated navigation. It can be directly applied to inertial navigation of surface-to-air missiles, air-to-air missiles and navigation missiles. It can be widely used in space stabilization systems, mapping systems, attitude reference systems, motion compensation systems, imaging stabilization systems, flight control systems and air combat maneuvering instruments/navigation test equipment.

Features
All-solid triaxial fiber optic gyroscope and triaxial quartz flexibility accelerometer
Fast start-up and fast response
Full attitude measurement
Low power consumption
Miniaturization
Fully sealed
Non-active part
Gas protection compartment
Reliable frame structure
High reliability and long life

Specifications

Item	Parameter	Unit
Gyro performance
Range	±500	deg/s
Scale Factor Repeatability (1σ)	≤100	ppm
Scale Factor Non-Linearity (1σ)	≤100	ppm
Bias Stability (10s 1σ)	≤0.3	deg/hr
Full Temperature Bias Stability(1σ)	≤1(Temperature 1.0℃/ min) (1s )	deg/hr
Bias Repeatability(1σ 25℃)	≤0.3	deg/hr
Angular Random Walk	≤0.05	°/ √h
Accelerometer performance
Range	±30	g
Bias Stability (10s 1σ)	≤200	ug
Full Temperature Bias Stability (1σ)	≤500	ug
Scale Factor Repeatability	≤300	ppm
Environment and power
Operate Temperature	-45~+70	℃
Power Supply	18~36	V
Communication Interface	RS-422	/
Physical characteristics
Size	Φ90 *105.0	mm
Weight	1500± 60	g
Mounting Hole Spacing	76*76	mm
Mounting Screw	4*M5	/
