Pipe Inertial Mapping System

Pipe Inertial Mapping System

ER-PMINS (±3°) Features:
1. Long time high precision navigation technology (100h+);
2. High precision correction technology in mark spot;
3. Spiral trajectory error compensation technique;
4. Closed pipe "special situation" processing technology;
5. Pipeline environmental adaptability technology;
6. Accurate positioning in pipeline surveying and mapping.

Pipe Inertial Mapping System

Pipe Inertial Mapping System

Get Price Now



    Share to:

    Introduction

    ER-PMINS Pipe Inertial Mapping System

    Introduction

    ER-PMINS Pipe Inertial Mapping System can measure the trajectory, coordinate of oil and gas pipeline, and do meter grade positioning, assisted pipeline safety assessment and damaged point positioning. With the advantages of a highly automatic, low power consumption, long term working and the centimeter grade measurement precision of pipeline deformation. The product has successfully applied in CNOOC, petro china pipeline detection engineering application.

    Features

    Long time high precision navigation technology (100h+);

    High precision correction technology in mark spot;

    Spiral trajectory error compensation technology;

    Closed pipe "special situation" processing technology;

    Pipeline environmental adaptability technology;

    Accurate positioning in pipeline surveying and mapping.

    Applications

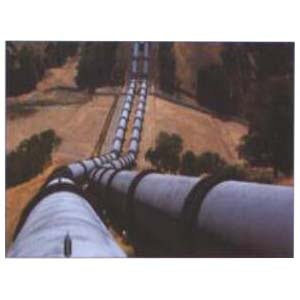

    Pipeline detection

    Pipe mapping inertial navigation system

    Specifications

    Measurement range

    Speed range -50 m/s~50m/s
    Pitch angle ±90°
    Roll angle ±180°
    Heading range 0°~360°

    Measurement Precision

    Height ±2m (1σ)
    Horizontal positioning accuracy (east, north) ±2m (1σ)
    Pitch angle (initial alignment) ±0.15 °
    Roll angle (initial alignment) ±0.15 °
    Heading angle (initial alignment) ±3 °
