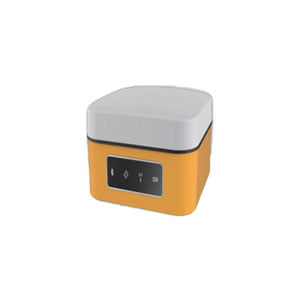

Full System Full Frequency Mini Receiver

ER-GNSS-R04
1. Supports BDS, GPS, GLONASS, Galileo, QZSS, SBAS;
2. Centimeter-level positioning;
3. Built-in large-capacity lithium battery, long battery life.

Full System Full Frequency Mini Receiver

Full system full frequency mini receiver

Get Price Now



    Share to:

    Introduction

    Full System Full Frequency Mini Receiver

    ER-GNSS-R04 is a mini portable multi-function GNSS receiver, a new generation measurement engine, support tilt measurement, built-in 4G full network communication and Bluetooth/WIFI, with a new appearance design, magnesium alloy structure, Linux operating system, is an extreme, multi-function, lightweight and portable geodetic GNSS receiver.

    Features

    Linux+QualcommMDM9628 Cortex-A7 Intelligent System Platform

    Supports BDS, GPS, GLONASS, Galileo, QZSS, SBAS

    Centimeter-level positioning

    Support tilt measurement, and meet the positioning accuracy of less than 2cm in the tilt range of 30°

    Built-in large-capacity lithium battery, long battery life

    Industrial-grade design, rugged magnesium alloy housing, IP67 design requirements, safe and reliable

    Specifications

    Performance index
    Hardware Platform Qualcomm MDM9628 Cortex-A7
    Software Platform Linux
    GNSS GPS L1/L2/L5
    GLONASS L1/L2
    BDS B1/B2/B3
    Galileo E1/E5a/E5b
    QZSS L1/L2/L5
    SBAS L1
    Supported Data Formats NMEA-0183
    Correction volume  I/O protocol RTCM 2.X, RTCM3.X
    Data update rate 5Hz
    Recapture time <1s
    Cold start <40s
    Positioning Accuracy Single-point positioning (RMS) Plane: 1.5m; Elevation: 3.0m
    DGPS (RMS) Plane: 0.4m; Elevation: 0.8m
    RTK (RMS) Plane: ±(10mm+1ppm)

    Elevation: ±(15mm+1ppm)

    Time accuracy (RMS) 20ns
    Static accuracy (RMS) Horizontal: ±(2.5mm+1ppm)

    Elevation: ±(5mm+1ppm)

    Velocity accuracy (RMS) 0.03m/s
    Tilt compensation accuracy (within 30°) <2cm
    Bluetooth V2.1+EDR/V4.0 Dual Mode
    WIFI WIFI 802.11 a/b/g/n/ac
    System Platform Network communication Full network communication
    LTE FDD: B1/B3/B5/B8
    LTE TDD: B38/B39/B40/B41
    TD-SCDMA: B34/B39
    CDMA: BC0
    WCDMA: B1/B8
    GSM: 900/1800MHz
    Indicator Lights Built-in storage onboard 32GB
    Power Light Power Indicator
    Satellite light Positioning status indicator
    Bluetooth indicator Bluetooth connection status light
    Data Link Light Differential Data Link Light
    Specifications 3.7V, 9600mAh
