Single Axis MEMS gyroscope

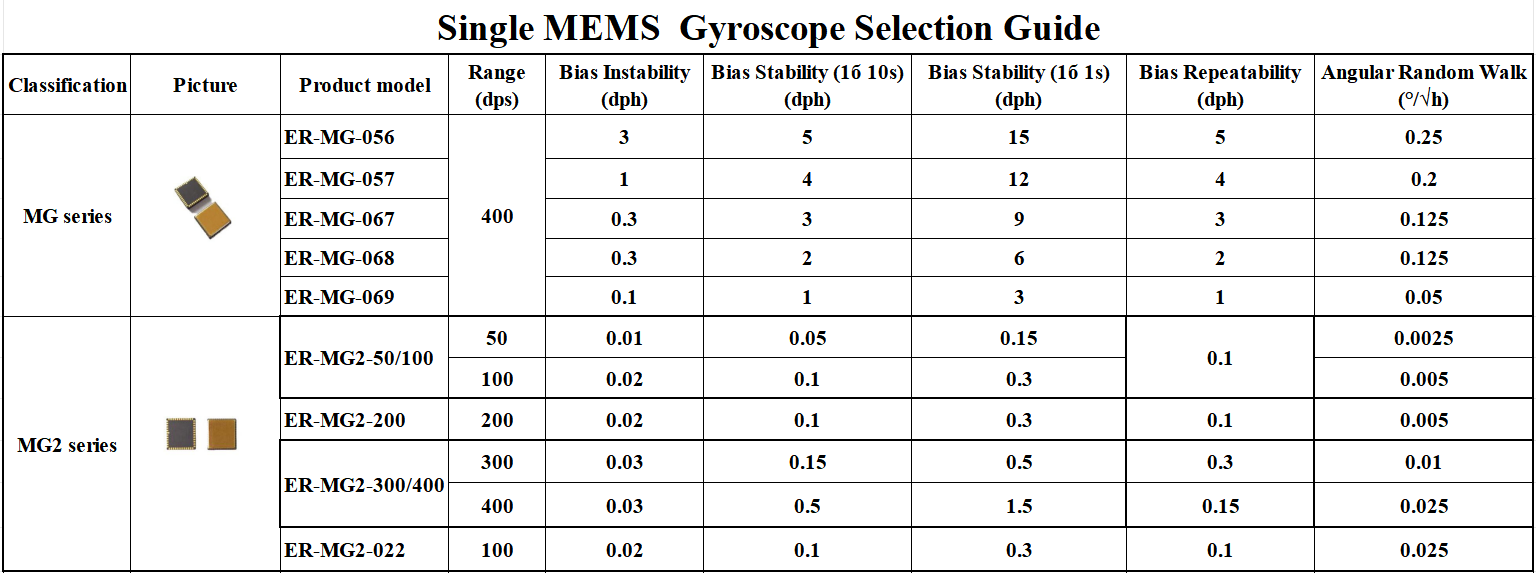

Single Mems Gyroscope Selection Guide

High Performance North Seeking MEMS Gyroscope

ER-MG2-50/100 (0.01-0.02°/hr)
1. 0.01-0.02°/hr bias instability;
2. 0.0025-0.005°/√hr angular random walk;
3. Small size: 11x11x2mm.

ER-MG2-300/400 (0.03-0.05°/hr)
1. Up to ±400°/s measurement range;
2. 0.03-0.05°/hr bias instability;
3. 0.01-0.025°/√hr angular random walk.

ER-MG-056 (1°/h)
1. 1°/hr bias instability;
2. 0.25°/√hr angular random walk;
3. 5°/hr bias stability.

ER-MG-067 (<0.3°/hr)
1. <0.3°/hr bias instability;
2. <0.125°/√hr angular random walk;
3. 3°/hr bias stability.

ER-MG2-200 (<0.02°/hr)
1.Up to 200°/s measurement range;
2.<0.02°/hr bias instability;
3.<0.005°/√hr angular random walk.

ER-MG2-022(<0.02°/hr)
1. <0.02°/hr bias instability;
2. <0.025°/ √h angular random walk;
3. <0.1°/hr bias stability.

ER-MG-057 (1°/h)
1. 1°/hr bias instability;
2. 0.2°/√hr angular random walk;
3. 4°/hr bias stability.

ER-MG-068 (<0.3°/h)
1. <0.3°/hr bias instability;
2. <0.125°/√hr angular random walk;
3. Small size: 11 x 11 x 2mm.

ER-MG-069 (<0.1°/h)
1. <0.1°/hr bias instability;
2. <0.05°/√hr angular random walk;
3. Small size: 11 x 11 x 2mm.
