High Performance Navigation 2 axis MEMS Gyro

ER-2MG-15
1. Thin;
2. Light weight;
3. Simple structure and good reliability.

Share to:

Introduction

High Performance Navigation 2 axis MEMS Gyro

Introduction
The ER-2MG-15 High Performance Navigation 2 axis MEMS Gyro has small volume, light weight, simple structure and good reliability. The biggest function of the 2-axis gyroscope is to “measure the angular velocity to judge the motion state of the object, so it is also called a motion sensor”. In other words, this thing can let our equipment know where we are and where we are going.

Application
Construction machinery dip angle measurement, angle control, pylon operation monitoring, medical equipment angle control, satellite antenna star search, bridge, tall building, tower, dam monitoring and rock and soil monitoring, mining, attitude/heading reference system, integrated inertial navigation.

Specifications

Parameter	ER-2MG-15		Unit
Parameter	A	B	Unit
Range	300	400	deg/s
Bandwidth (-3dB)	50	100	Hz
Scale Factor at 25°C	28000	20000	lsb/deg/s
Scale Factor Repeatability (1σ)	<50	<20	ppm
Scale Factor VS Temperature (1σ)	±300	±100	ppm
Scale Factor Non-Linearity (1σ)	<300	<100	ppm
Bias Instability	0.03	0.05	deg/hr
Bias stability (10s 1σ)	0.15	<0.5	deg/hr
Angular Random Walk	<0.01	<0.025	°/ √h
Bias Repeatability (1σ 25℃)	<0.3	<0.3	deg/hr

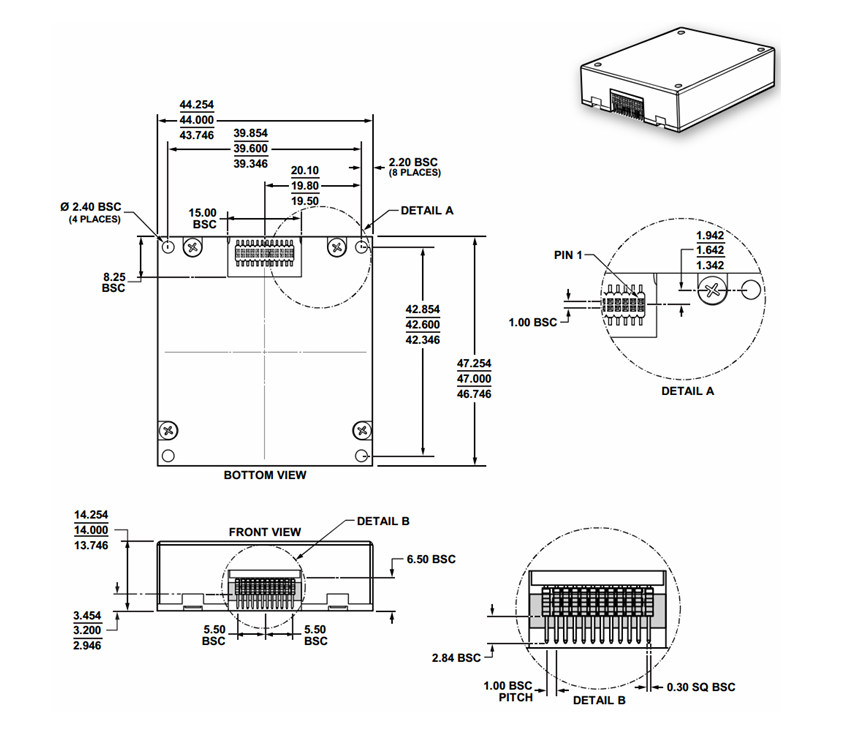

Size	474414		mm
Weight	40		g
Operating temperature	-40~80		℃
Storage temperature	-55~105		℃
Operating voltage	6~12		V
