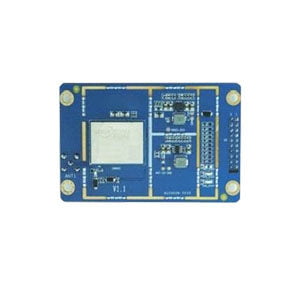

Full System Full Frequency Point High Precision Positioning Directional Board

ER-GNSS-B01
1. 71 x 46mm board, universal size;
2. Support the whole system full frequency point on chip RTK positioning solution;
3. Dual-RTK, Dual RTK engine technology.

Share to:

Introduction

Full System Full Frequency Point High Precision Positioning Directional Board

ER-GNSS-B01 is a new generation of compact high-precision positioning and orientation board based on NebulasIV RF baseband integrated chip, which supports full-frequency high-precision positioning and orientation of the whole system. Supports BDS B1I/B2I/B3I, GPS L1/L2/L5, GLONASS L1/L2, Galileo E1/E5a/E5b, QZSS L1/L2/L5, SBAS and other satellite signals.The ER-GNSS-B01 comes in a small classic size and is compatible with the previous generation of mainstream boards. It is mainly used in UAV, precision agriculture, intelligent driving and other application fields.

Features

Based on the latest generation of Nebulas IV RF baseband and RTK algorithm integrated GNSS SoC chip, 1408 channels

71 x 46mm board, universal size, interface compatible with previous generation board

Support the whole system full frequency point on chip RTK positioning solution, and double antenna orientation solution

Support BDS B1I/B2I/B3I, GPS L1/L2/L5, GLONASS L1/L2, Galileo E1/E5a/E5b, QZSS L1/L2/L5, SBAS

Dual-RTK, Dual RTK engine technology

Specifications

Performance Index
Channel	1408 channel, based on NebulasIV chip
Signal	BDS B1I/B2I/B3I
	GPS L1C/A/L2P(Y)/L2C/L5
	GLONASS L1/L2
	GalileoE1/E5a/E5b
	QZSS L1/L2/L5
Single point positioning (RMS)	Plane:1.5m;elevation:2.5m
RTK (RMS)	Plane:0.8cm+1ppm
	Elevation: 1.5cm+1ppm
Observation accuracy(RMS)	BDS	GPS	GLONASS	Galileo
B1I/L1C/A/E1/G1Pseudo distance	10cm	10cm	10cm	10cm
B1I/L1C/A/E1/G1 Carrier phase	1mm	1mm	1mm	1mm
B2I/L5/G2/E5b Pseudo distance	10cm	10cm	10cm	10cm
B2I/L5/G2/E5b Carrier phase	1mm	1mm	1mm	1mm
B3I/L2P(M)/L2C/G2 Pseudo distance	10cm	10cm	10cm	10cm
B3I/L2P(Y)/L2C/G2 Carrier phase	1mm	1mm	1mm	1mm
Time to First Fix (TTFF)	Cold start<30s
RTK initialization time	5s (typical value)
Initialization reliability	>99.9%
Differential data	RTCM3.X
Data format	NMEA 0183 Unicore
Observation data update rate	20Hz
Original observational data Update rate	20Hz
Orientation accuracy	0.1°/1m baseline
Time accuracy (RMS)	20ns
Velocity accuracy (RMS)	0.03m/s

Physical characteristics
Size	71×46mm
Weight	≤22g
Antenna port	2*MMCX
Operating temperature	-40℃~+85℃
Storage temperature	-55℃~+95℃
Humidity	Relative humidity: 95%
Electrical Specifications
Working voltage	3.2V-5VDC
Power consumption	≤1W
