Full system full frequency point high precision positioning board

Full System Full frequency Point High Precision Positioning Board

ER-GNSS-B02
1. 71 x 46mm board;
2. Universal size;
3. Interface compatible with previous generation board.

Full System Full frequency Point High Precision Positioning Board

Full system full frequency point high precision positioning board

Get Price Now



    Share to:

    Introduction

    Full System Full frequency Point High Precision Positioning Board

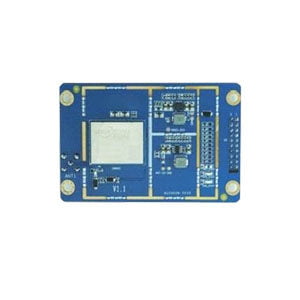

    ER-GNSS-B02 is a new generation of compact high-precision positioning board basedon NebulasIV RF baseband integrated chip, which supports full-frequency high-precision positioning of the whole system. Supports BDS B1I/B2I/B3I/B1C/B2a/B2b*, GPS L1/L2/L5, GLONASS L1/L2, Galileo E1/E5a/E5b, QZSS L1/L2/L5, SBAS and other satellite signals.

    The ER-GNSS-B02 comes in a small classic size, compatible with the previous generation of mainstream boards. Mainly for surveying and mapping, lawnmower, precision agriculture and other applications.

    Features

    Based on the latest generation of Nebulas IV RF baseband and RTK algorithm integrated GNSS SoC chip, 1408 channels

    71 x 46mm board, universal size, interface compatible with previous generation board

    Support the whole system full frequency point on chip RTK positioning solution

    Supports BDS B1I/B2I/B3I/B1C/B2a/B2b*, GPS L1/L2/L5, GLONASS L1/L2, and Galileo E1/E5a/E5b, QZSS L1/L2/L5, SBAS

    Instantaneous RTK initialization technique

    Satellite frequency independent tracking and 60dB narrow-band anti-jamming technology

    Specifications

    Performance Index
    Channel 1408 channel, based on NebulasIV chip
    Signal BDS B1I/B2I/B3I/B1C/B2a/B2b*
    GPS L1C/A/L1C’/L2P(M)/L2C/L5
     GLONASS L1/L2
    GalileoE1/E5a/E5b
    QZSS L1/L2/L5
    Single point positioning (RMS) Plane:1.5m; elevation:2.5m
    RTK (RMS) Plane:0.8cm+1ppm
    Elevation: 1.5cm+1ppm
    Observation accuracy(RMS)  BDS  GPS GLONASS Galileo
    B1l/B1C/L1C*/L1C/A/G1/E1 Pseudo distance 10cm 10cm 10cm 10cm
    B1l/B1C/L1C*/L1C/A/G1/E1 Carrier phase 1mm 1mm 1mm 1mm
    B3I/L2P(Y)/L2C/G2 Pseudo distance 10cm 10cm 10cm 10cm
    B3I/L2P(Y)/L2C/G2 Carrier phase 1mm 1mm 1mm 1mm
    B2I/B2a/B2b*/L5/E5a/E5b Pseudo distance 10cm 10cm 10cm 10cm
    B2I/B2a/B2b*/L5/E5a/E5b Carrier phase 1mm 1mm 1mm 1mm
    Time to First Fix (TTFF) Cold start<30s
    Warm start<5s
    RTK initialization time <5s (typical value)
    Initialization reliability >99.9%
    Differential data RTCM3.X
    Data format NMEA 0183 Unicore
    Observation data update rate 20Hz
    Time accuracy (RMS) 20ns
    Velocity accuracy (RMS) 0.03m/s



    Physical characteristics
    Size 71×46mm
    Weight ≤ 22g
    I/O interface 20pin row
    Antenna port 1*MCX
    Operating temperature -40℃~+85℃
    Storage temperature -55℃~+95℃
    Humidity Relative humidity: 95%
    Electrical Specifications
    Working voltage 3.2V-5VDC
    Power consumption ≤1W
