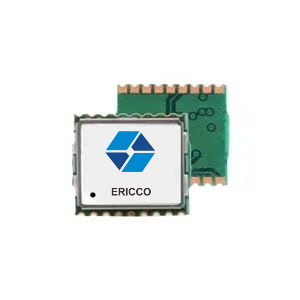

Standard Precision GNSS Small Size Module

ER-GNSS-M05
1. Ultra-small package;
2. Compact design and small size;
3. Low power design.

Share to:

Introduction

Standard Precision GNSS Small Size Module

The ER-GNSS-M05 product is a multi-system small positioning module for the automotive-grade market. The ER-GNSS-M05 is the fourth generation GNSS Navigation and positioning module products, using completely independent intellectual property rights of low-power anti-interference GNSS SoC chip ER-GNSS-C01. High integration, low power consumption, anti-interference design, small size, it is suitable for GNSS applications with high cost requirements.

Features

Ultra-small package

Compact design and small size

Excellent navigation and positioning performance, support single system independent positioning and multi-system joint positioning

Anti-interference design, the module can work stably in complex electromagnetic environment

Low power design

To meet the performance, volume and cost requirements sensitive large-scale application

Specifications

Performance Index
Specification	Industrial grade
Channel	64 channels, based on UFirebird
Signal	BDS B1
	GPS L1
	Galileo E1
	GLONASS L1
	QZSS
	SBASS
Positioning mode	Single-system independent positioning Multi-system joint positioning <1m CEP
Time to first fix (TTFF)	Cold start<28s
	A-GNSS<4s
	Warm start<1s
	Recapture<1s
Positioning accuracy	2.0m CEP (Dual System Level)
Velocity accuracy	0. 1m/s
1PPS	Support
Data update rate	1HZ
Sensitivity
Tracking	161dBm
Capture	146dBm
Warm start	151dBm
Recapture	158dBm
Data format	NMEA 0183, Unicore

Physical characteristics
Size	9.7×10.1×2.2mm
Encapsulation	18-pin, SMD surface mount
Operating temperature	-40℃~+85℃
Storage temperature	-45℃~+90℃
Electrical Specifications
Working voltage	3.0V-3.6V DC
LNA feed	3.0V~3.3V, <100mA
Power consumption	90MW
