High Precision Integrated Navigation Positioning Module

High Precision Integrated Navigation Positioning Module

ER-GNSS-M02
1. Equipped with a high-precision RTK algorithm engine;
2. Easy to achieve centimeter-level positioning;
3. Small size, low power consumption, easy system integration.

High Precision Integrated Navigation Positioning Module

High Precision Integrated Navigation Positioning Module

Get Price Now



    Share to:

    Introduction

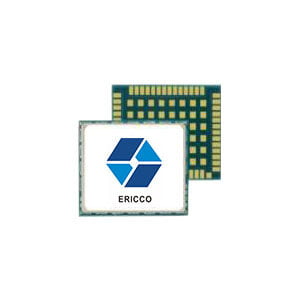

    High Precision Integrated Navigation Positioning Module

    ER-GNSS-M02 is a new cost-effective and high-precision integrated navigation and positioning module, which supports the multi-frequency signal reception of the whole constellation. The module adopts M02PIN LGA package, 17mm*22mm small size, high integration, low power consumption. ER-GNSS-M02 module is equipped with high precision RTK algorithm engine, which supports long baseline RTK solution and fast initialization. Built-in IMU, using tight combination algorithm, can continuously output stable and reliable navigation and positioning data in areas where satellite signals are seriously blocked. The ER-GNSS-M02's small size and low power design and excellent navigation and positioning performance can be widely used in high-precision GIS equipment, UAV, autonomous driving, agriculture and construction machinery and other fields.

    Features

    RTK GPS module, RTK GNSS module.

    Support multi-frequency positioning of the whole constellations, support Beidou, GPS, GLONASS, Galileo, QZSS, NavIC six-star solution.

    Equipped with a high-precision RTK algorithm engine, it is easy to achieve centimeter-level positioning.

    Built-in IMU, using tight combination algorithm, can provide continuous navigation and positioning output.

    Small size, low power consumption, easy system integration.

    Supports long baseline RTK solutions and fast initialization.

    Parameters

    GNSS performance indicators
    Satellite system BDS, GPS, GLONASS, GALILEO, QZSS, NavIC
    Tracking characteristics GPS: L1, L5, GLONASS: G1, BeiDou: B1I, B2a

    GALILEO: E1/E5a, QZSS: L1, L5, NavIC: L5

    Data Update rate 10Hz
    Horizontal accuracy ≤8mm+1ppm
    Carrier phase Observation accuracy <0.01 cycle
    Timing accuracy 10ns
    Capture sensitivity -148dBm
    Tracking sensitivity -165dBm
    Cold start ≤24s
    Warm start ≤2s
    Fixed solution convergence time ≤5s
    IMU Performance index
    Gyroscope
    Range ±1000 deg/s
    Zero bias stability ±4.5 deg/h
    Angular random Walk 0.75deg/√h
    Accelerometer
    Range ±16g
    Zero bias stability ±0.25mg
    Angular random Walk 0.3m/s/√h
    Roll accuracy ≤0.02°(1σ)
    Pitch accuracy ≤0.02°(1σ)
    Heading accuracy ≤0.2°(1σ)
    Inertial estimation accuracy ≤1%*D(1σ,vehicle)
    Data sampling rate 50Hz
    Communication indicators
    Data interface 2 UART serial ports with 1PPS output
    Baud rate  115200
    Differential format support RTCM3.x
    Data format NMEA0183
    Electrical characteristic
    Power consumption 500mW
    Environmental index
    Working Temperature -40℃~+85℃
    Storage Temperature -40℃~+90℃
    Humidity 95% non-condensation
    Mechanical indicators
    Dimension 17mm*22mm
    Packaging LGA, 54 PIN
