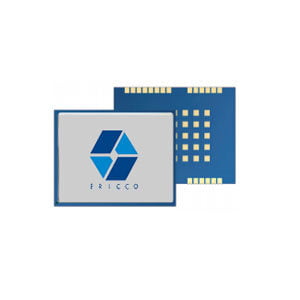

Full System Multi-frequency High-precision Timing Module

ER-GNSS-M03
1. Suppression technology;
2. Support interference detection and deception detection;
3. Support single star timing.

Share to:

Introduction

Full System Multi-frequency High-precision Timing Module

ER-GNSS-M03 is a new generation GNSS full system multi-frequency, high-precision timing module. The module integrates filters, linear amplifiers, and at the same time has optimized RF structure and interference suppression capability. The internal integration of Jam Shield adaptive anti-interference technology and U-Auto Align multi-path suppression technology supports interference detection and deception detection functions, ensuring that the module can still provide good performance in complex electromagnetic environments. The module can provide nanosecond PPS accuracy, support fixed point timing, independent optimization timing, positioning timing, and still ensure good timing accuracy in complex signal environment.

Features

RTK GPS module, RTK GNSS module.

Based on the latest generation of NebulasIV RF base band and high-precision algorithm integrated GNSS SoC chip

The new generation GNSS full system multi-frequency, high-precision timing

Module supports the Beidou-3 satellite

Nanosecond PPS accuracy

Jam Shield adaptive anti-jamming technology and U-Auto Align multi path

Suppression technology

Support interference detection and deception detection

Support single star timing

Specifications

Performance Index
Channel	1408 channel, based on NebulasIV chip
Signal	BDS B1I/B1C/B2a
	GPS L1C/A/L2C/L5
	Galileo E1/E5a/E5b
	GLONASS L1
Single point positioning(RMS)	Plane:1.5m; Elevation: 2.5m
Sensitivity	BDS	GPS	GLONASS	Galileo
Capture	-145dBm	-147dBm	-145dBm	-145dBm
Tracking	-160dBm	-161dBm	-155dBm	-155dBm
Time to First Fix (TTFF)	Cold start<30s
	Recapture<3s
RTK initialization time	<5s (typical value)
Initialization reliability	>99.9%
Differential data	RTCM v3.2
Data format	NMEA 0183 Unicore
Observation data update rate	1Hz
1pps accuracy (RMS)	2.5ns
Velocity accuracy (RMS)	0.03m/s
