Economical Directional Sensor

Economical Fluxgate Directional Assembly

ER-OS-05 (0°~180°±0.1°) Features:
1. Small size;
2. High precision;
3. Anti-vibration;
4. Anti-impact.

Economical Fluxgate Directional Assembly

Economical Directional Sensor

Get Price Now



    Share to:

    Introduction

    ER-OS-05 Economical Directional Sensor

    Introduction
    ER-OS-05 Economical Fluxgate Directional Assembly includes a 3-axis fluxgate sensor and a 3-axis MEMS acceleration sensor. The sensor is equipped with built-in temperature compensation, and the inclination accuracy is ±0.1° and azimuth accuracy is ±0.5° within the temperature range of 0~125°c.
    In addition, the sensor can also measure the total acceleration, total magnetic field strength, magnetic tool surface angle, geomagnetic inclination angle, temperature, rotation speed and other parameters. ER-OS-05 has the characteristics of small size, high precision, anti-vibration and anti-impact. ER-OS-05 can correct the angle deviation caused by mechanical installation through the supporting upper computer software.

    Features
    Small size
    High precision
    Anti-vibration
    Anti-impact

    Specifications

    Inclination range 0°~180°
    Inclination accuracy ±0.1°
    Tool face range 0°~360°
    Tool face accuracy ±0.2°
    Azimuth range 0°~360°
    Azimuth ±0.5°@90°
    ±1°@10°
    ±2°@5°
    Speed range 0~400RPM
    Speed accuracy ±4%
    Operation temp 0℃~125℃
    Storage temp -40℃~130℃
    Input voltage scope +4.9~+12V
    Input current ≤50mA (Vin=+5V)
    Baud rate 9600 (default) maximum to 115200
    Communication interface TTL/RS232
    Shock 2000G, 0.5MS
    Vibration 30g

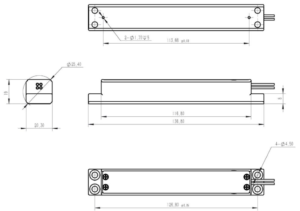

    Dimension
