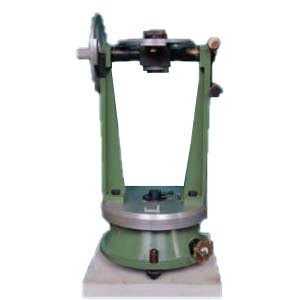

NonMagnetic Logging Tools Calibration Set

NonMagnetic Logging Tools Calibration Set

ER-GTCS-01 (0°~180°± 2′):
1. Very high precision;
2. Robust structure;
3. Excellent stability.

NonMagnetic Logging Tools Calibration Set

NonMagnetic Logging Tools Calibration Set

Get Price Now



    Share to:

    Introduction

    Non-Magnetic Inclinometer Calibration Set

    Introduction

    Non-Magnetic Inclinometer Calibration Set has very high precision, which is main calibration instrument for inclinometer on ground, and can be used to check inclinometer's azimuth error, inclination error and measurement accuracy.

    Feature

    Robust structure

    Easy to use

    Excellent stability and high precision

    1' st non-magnetic materials

    Specifications

    Inclination: 0°~180°± 2′

    Azimuth: 0°~360°± 2′

    Tool face angle: 0°~360°± 2′

    Diameter range of the instrument under test: φ30~50m m

    Maximum weight of the instrument under test: 6 kg

    Dimension: Diameter×Height=400×800 mm

    Net weight: 30 Kg
