Low Cost 2D Electronic Compass

Low Cost 2D Electronic Compass

ER-EC-225:
1. Heading accuracy 1°, tilt range ±5°;
2. Measurement range 0~360°;
3. With hard magnetic, soft magnetic and tilt compensation.

Low Cost 2D Electronic Compass

Low Cost 2D Electronic Compass

Get Price Now



    Share to:

    Introduction

    Low Cost 2D Electronic Compass

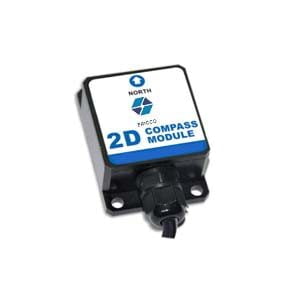

    It is a high-precision two-dimensional electronic compass, which measures the azimuth from 0 to 360°. It is composed of industrial microcontroller with high reliability and strong anti-interference ability, high-precision magnetic sensors and drive chips, and integrates hard magnetic interference and soft magnetic interference compensation technology. It can be customized according to customer needs, and it is very convenient to quickly integrate the electronic compass function into various products.
    The product is small in size and low in power consumption, and can be used in many fields such as antenna stability, automotive, and system integration. Strong shock resistance, can work normally in extremely harsh environments, which is more suitable for today's miniaturized high-precision measurement.

    Features
    Measurement range 0~360°
    Heading accuracy 1°, tilt range ±5°
    Industrial grade design
    Input voltage DC 5V
    Wide temperature working -40~+85℃
    With hard magnetic, soft magnetic and tilt compensation
    Baud rate 2400~115200 (adjustable)
    Working current: 40mA
    IP67 protection level
    Output RS232/RS485/TTL/MODBUS (optional)
    Small volume (55*37*24mm) (customizable)

    Applications
    Individual combat equipment
    Satellite solar antenna positioning
    AGV car
    Mining machinery, oil logging equipment
    Medical equipment
    Gimp leveling
    UAV positioning and navigation
    Tilt based monitoring
    Various construction machinery angle control
    Inspection of bridges and dams

    Specifications

    Heading parameter Heading accuracy
    Resolution 0.1°
    Repeatability 0.3°
    Tilt parameter Heading angle tilt compensation +/-5°
    Heading angle measurement range 0~360°
    Calibration Hard iron calibration Yes
    Soft iron calibration Yes
    Magnetic field interference calibration One circle of plane rotation 2D calibration
    Physical property Size L33xW27xH8 (mm)
    Weight 75g
    RS232/RS485 interface connector 5 pin
    Interfaces characteristics Startup delay <50ms
    Maximum sampling rate 50 times per second
    RS-232 communication rate 2400~19200 baud rate
    RS- 485 communication Optional
    TTL communication Optional
    Output format Hexadecimal high performance protocol
    Power supply Support voltage DC+5V (9~36V customizable)
    Current (maximum) 40mA
    Working mode 30mA
    Environment Storage temperature -40℃~+125℃
    Working temperature -40℃~+70℃
    Vibration resistance 2500g

    Application Techniques

    1.The Difference Between Gyroscope, Compass, IMU, MEMS

    2.Application of Gyroscope in Electronic Compass

    3.Principle of digital compass

    4.What Is The Difference Between Gyro Error and Compass Error in Navigation?

    5.How does an Electronic Compass Work?

    6.Do You Know The Difference between electronic compass and GPS navigation?
