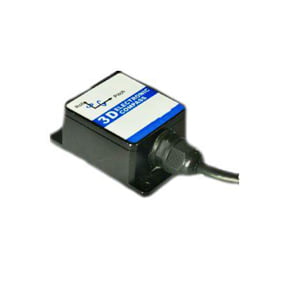

Full-Attitude-Three-Dimensional-Electronic-Compass

Digital Output-Full Attitude 3D Electronic Compass

ER-EC-365B:
1. Heading accuracy 0.3~0.5°, resolution 0.1°;
2. Measurement range 0~360°;
3. Wide working temperature range -40~+85℃.

Digital Output-Full Attitude 3D Electronic Compass

Full-Attitude-Three-Dimensional-Electronic-Compass

Get Price Now



    Share to:

    Introduction

    Digital Output-Full Attitude 3D Electronic Compass

    Product Description
    The ER-EC-365B is a high-precision, full-attitude 3d electronic compass that uses advanced hard and soft iron calibration algorithms to provide high-precision heading information in 360° roll, +/-90° full dip range. It has the characteristics of small volume and low power consumption and is more suitable for the measurement system with power consumption and volume sensitivity.

    The precise attitude of the product output carrier can be used in the system of full attitude rotation. This product has hard magnetic, soft magnetic and tilt compensation, compass output after calibration of high precision measurement. The patented three-axis fluxgate uses the CPU to calculate the heading in real time, and the three-axis accelerometer compensates for the heading angle, which can provide accurate heading and obtain data even in extremely harsh environments. With the characteristics of small size and low power consumption, it is widely used in many fields such as petroleum logging, antenna pointing, vehicle navigation, attitude system and so on.

    Features
    Measurement range 0~360°
    Heading accuracy 0.5°, tilt range 360°
    Industrial grade design
    Input voltage DC 5V
    Wide temperature working -40~+85℃
    With hard magnetic, soft magnetic and tilt compensation
    The baud rate is adjustable from 2400~115200
    Working current: 40mA
    IP67 protection level
    Output RS232/RS485/TTL/MODBUS (optional)
    Small volume (55*37*24mm) (customizable)

    Applications
    Individual combat equipment
    Satellite solar antenna positioning
    Low AGV car
    Mining machinery, oil logging equipment
    Medical equipment
    Gimp leveling
    Uav positioning and navigation
    Tilt based monitoring
    Various construction machinery angle control
    Inspection of bridges and dams

    Specifications

    Compass heading parameter Heading accuracy 0.3~0.5°(RMS, Pitch<85°)
    Resolution 0.1°
    Repeatability 0.05°
    Compass tilt parameter Pitch accuracy 0.1°
    Roll accuracy 0.1°(Pitch<65°)
    0.2°(Pitch<80°)
    0.5°(Pitch<86°)
    Dip resolution 0.01°
    Slant range Pitch±90°, Roll 360°
    Calibration Hard iron calibration Yes
    Soft iron calibration Yes
    Tilt calibration Yes
    Physical property Size L55 x W37 x H24 (mm)
    Weight 75g
    RS232 /RS485 interface connector Direct line
    Interfaces characteristics Startup delay <50ms
    Maximum sampling rate 50 times per second
    Rs-232 communication rate 2400~19200 baud rate
    The RS - 485 communication Optional
    TTL communication Optional
    The output format hexadecimal
    Power supply Support the voltage DC+5V
    Current (maximum) 40mA
    Working mode 30mA
    Environment Storage temperature -40℃--+125℃
    Working temperature -40℃--+85℃
    Vibration resistance 2600g
