Analog Output-Full Attitude Three-Dimensional Electronic Compass (Single Board)

ER-EC-360V:
1. Heading accuracy 0.3~0.5°, resolution 0.1°;
2. Measurement range 0~360°;
3. Wide temperature working -40~+85℃.

Share to:

Introduction

ER-EC-360V Full Attitude 3D Electronic Compass - Analog

It is a high precision full attitude three-dimensional electronic compass, which can integrate digital signal RS232 output with analog 4-20mA, 0-5V output and IP67 waterproof. It adopts hard iron and soft iron calibration algorithms to provide high precision course information in 360° roll and +/-90° full inclination range. ER-EC-360V is specially optimized for oilfield applications, making it very suitable for inclinometer systems. ER-EC-360V can manually or automatically output the angle, azimuth and tool face angle information, and can output the current size of the magnetic field element. The operator only needs to connect the product data transmission circuit to form a high-precision inclinometer.
Product output of accuracy attitude can be used in a full attitude rotation system. This product has hard magnetic, soft magnetic and tilt compensation, the compass output after calibration of high precision measurement value. The patented three-axis fluxgate uses the CPU to calculate the heading in real time, and the three-axis accelerometer compensates for the heading angle, which can provide accurate heading and obtain data even in extremely harsh environments. With the characteristics of small size and low power consumption, it is widely used in many fields such as petroleum logging, antenna pointing, vehicle navigation, attitude system and so on.

Features
Measurement range 0~360°
Heading accuracy 0.3~0.5°, resolution 0.1°
Industrial grade design
Wide voltage working DC 9~36V
Wide temperature working -40~+85℃
With hard magnetic, soft magnetic and tilt compensation
The sampling rate 100HZ
Working current: 40mA
IP65 protection level
Output 0~5V, 4~20mA (optional)
Small volume (96*19*8mm) (customizable)

Applications
Individual combat equipment
Satellite solar antenna positioning
AGV car
Mining machinery, oil logging equipment
Medical equipment
Gimp leveling
UAV positioning and navigation
Tilt based monitoring
Various construction machinery angle control
Inspection of bridges and dams

Specifications

Compass heading parameter	Heading accuracy	0.3~0.5° (RMS pitching<85°)
	Resolution	0.1°
	Repeatability	0.05°
Compass tilt parameter	Pitch accuracy	0.1°
	Roll accuracy	0.1° (pitching<65°)
		0.2° (pitching<80°)
		0.5° (pitching<86°)
	Dip resolution	0.01°
	Tilting range	Pitch±90°, Roll 360°
Calibration	Hard iron calibration	Yes
	Soft iron calibration	Yes
	Tilt calibration	Yes

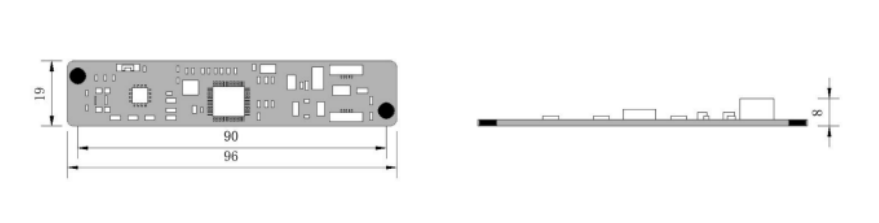

Physical property	Size	L96 x W19x H8 (mm)
	Weight	10g
	RS232/RS485 interface connector	5 pin connector
Interfaces characteristics	Startup delay	<50ms
	Maximum sampling rate	50 times per second
	RS-232 communication rate	2400 ~ 19200 baud rate
	RS-485 communication	Optional
	TTL communication	Optional
	Output format	Hexadecimal high performance protocol
	Analog output	4~ 20mA, 0~5V (Provide the heading angle directions only)
Power supply	Support the voltage	DC+9~36V
	Current (maximum)	40mA
	Working mode	30mA
Environment	Storage temperature	-40℃--+125℃
	Working temperature	-40℃--+85℃
	Vibration resistance	3000g
