What is the Hardware Interface of Ericco MEMS Gyro

1.Application products:

North seeking MEMS Gyro ER-MG2-100

Navigation grade MEMS Gyro ER-MG2-300/400

Tactic grade MEMS Gyro ER-MG-067

Low cost MEMS Gyro ER-MG-056

2.SPI timing

MEMS gyro sensor data is realized by accessing and reading the specified register address.Similarly, control of the MEMS gyro is achieved by writing the value to the specified register.

MEMS gyro realizes register access through 4-line SPI hardware interface timing sequence, and writes or reads registers with specified address. The SPI interface of MEMS gyro adopts Mode 3 timing sequence type for slave Mode. That is, CPOL = 1, CPHA = 1. Before CS was pulled down, the default level of Clock was high, and the data was read on the rising edge.

SPI timing parameters of mems gyro

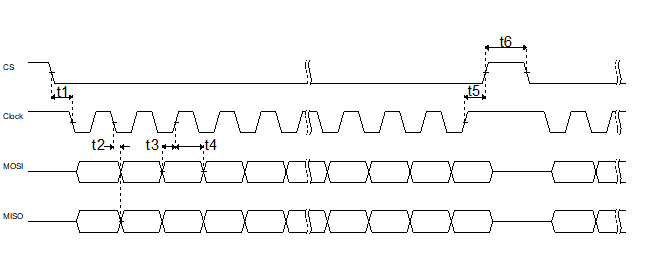

Figure 6 SPI timing parameters

Symbol Parameters Condition Min Typical Max Unit
Fsclk SPI clock frequency DIN/DOUT maximum load 20pF / 4 8 MHz
t1 Slice to clock edge / 200 / / ns
t2 SCLK after the edge

DOUT valid time

/ / / 62.5 ns
t3 SCLK rises along the previous DIN establishment time / 10 / / ns
t4 SCLK rises after DIN holds time / 10 / / ns
Tdr,Tdf DOUT rise and fall times, not shown VIO 3.3V / 10 / ns
t5 SCLK after the edge

SSB high level time

/ 200 / / ns
t6 Two SPI access intervals / 500 / / ns

Table 2 SPI timing parameters

2.SPI read write control

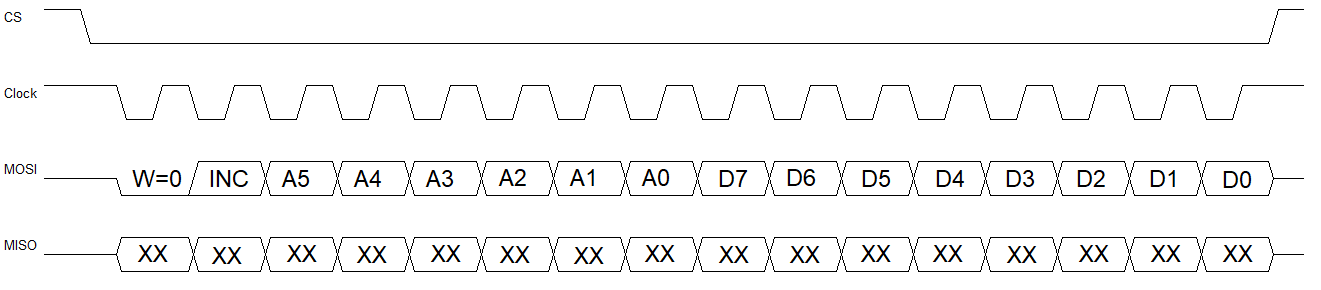

SPI single byte write timing-mems gyro

Figure 7 SPI single byte write timing

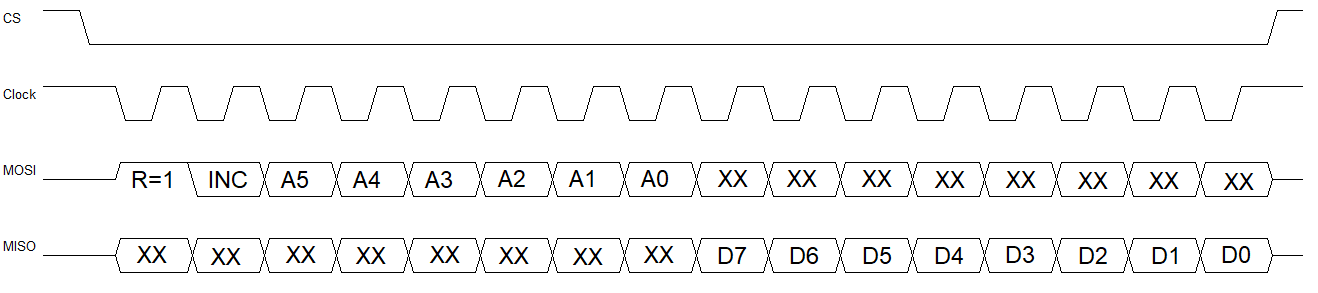

SPI single byte read timing-mems gyro

Figure 8 SPI single byte read timing

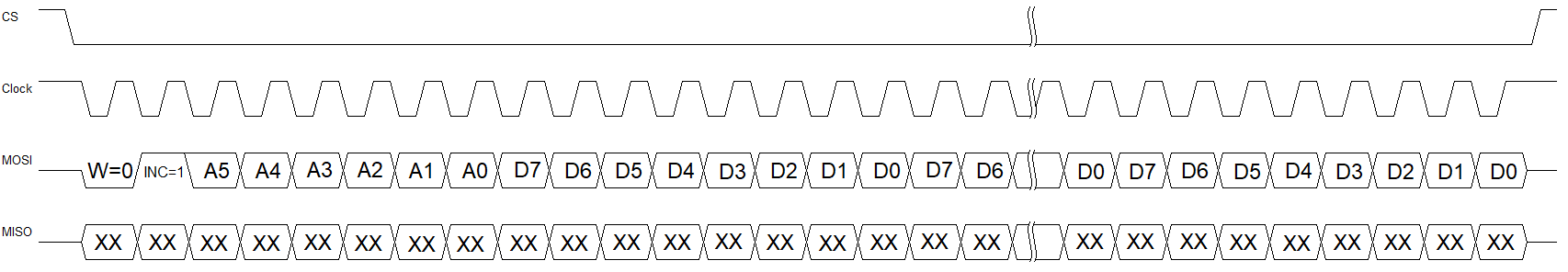

SPI multi-byte write timing-mems gyro

Figure 9 SPI multi-byte write timing

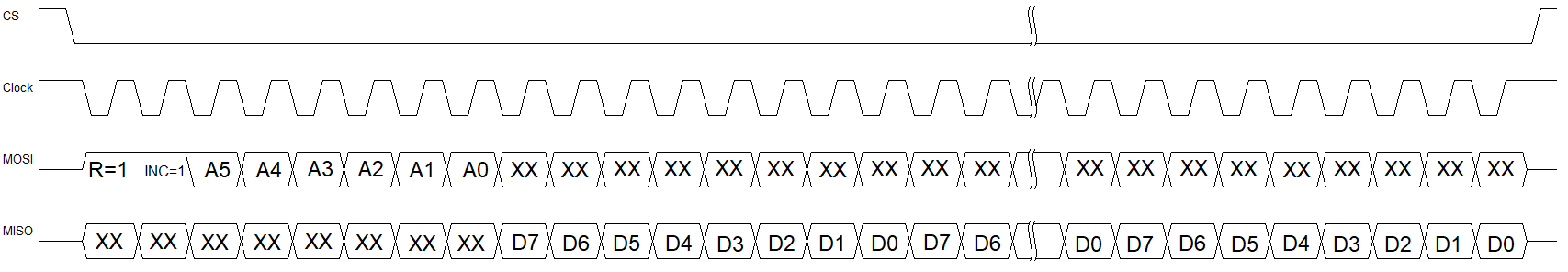

SPI multi-byte read timing of mems gyro

Figure 10 SPI multi-byte read timing

Remark:

W/R: SPI read and write control bits
/ 0: SPI write operation
/ 1: SPI read operation
INC: SPI reads and writes single - byte, multi - byte instructions
/ 0: SPI single byte reads and writes
/ 1: SPI address multibyte reads and writes
A5~A0: SPI operation address
/ range: 0x00 ~ 0x3F
D7~D0: SPI operates on data
/ range: 0x00 ~ 0xFF
