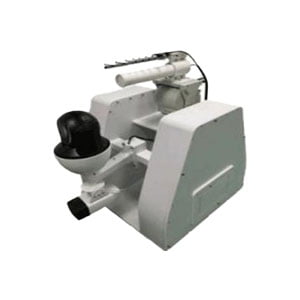

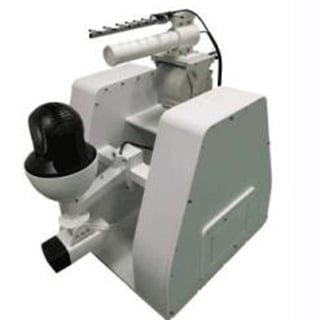

Low-altitude and Slow-speed Small Targets Defense System AUAV-Fixed
Introduction
Low-altitude And Slow-speed Small Targets Defense System is a version in order to deal with security threats and unexpected situations of the small UAV. The product can be achieved engineering deployment of fixed site, and 24 hours unattended with auto-detection, auto-tracing, and auto-attack together. The equipment adopts modular management, is easy to operate, and can be quickly assembled and deployed according to actual conditions. The product uses radio or radar automatic detection of drones, interferes with the drone’s positioning system and data link and then tracks and locks, cuts off the long-distance communication and navigation between the drones, thereby forcing the drone to automatically land or be expelled to ensure the safety of low-altitude airspace.
Features
Module design: product detection system adopting modular design, the system can be freely selected.
Main band suppression: main band detection and interference, covering the mainstream radio frequency band.
Standard city electricity: the equipment uses the standard 220V electricity, does not need the power electric device.
Simple assembly: modular structure design, easy access and assembly.
Engineering project: the equipment according to different customer scenarios, engineering deployment, to ensure excellent results.
Ergonomics: ergonomic design, simple and convenient operation.
Optional mode: the user can choose unattended mode or manual control mode.
Interference distance: transmit power can be adjusted, interference distance 1000~1200 meters.
High hit rate: 360 degreeomni-directionaldetection and interference, no precise aiming.
Complex weather: support for the detection and combat of complex meteorological conditions, including haze, haze, 6 winds, rain.
Specification
Detection parameters
Radio detection:
Working frequency: 100kHz~40GHz
Direction sensitivity: ≥15dBμV/m
Direction finding accuracy: ≤2° (RMS)
Radar detection:
Working frequency band: Ku band
Probability of discovery: Pd=0.8, false alarm rate: Pfa=10 -6, reflection surface: 0.01M 2, detection distance: 2km
Antenna fan sweep range: 0~360 degrees
Target radial velocity: 3km/h~72km/h
The minimum detection distance of more than 200m
Ranging accuracy: less than 15m
Azimuth accuracy: less than or equal to 0.5 degrees
Resolution: 15m
Azimuth resolution: less than or equal to 2 degrees
RF power: 10W
Photoelectric detection:
Detection distance: not less than 1KM
Distance resolution: resolution: 15m
Interference parameter
The maximum transmit power: 10W, three adjustable.
Effective distance: 1000~1200 meters
Jamming mode: unmanned aerial vehicle/unmanned aerial vehicle (optional)
Weight: 200Kg
Working temperature: -20-55 (Celsius)
